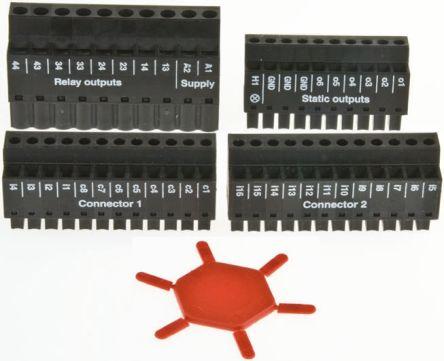

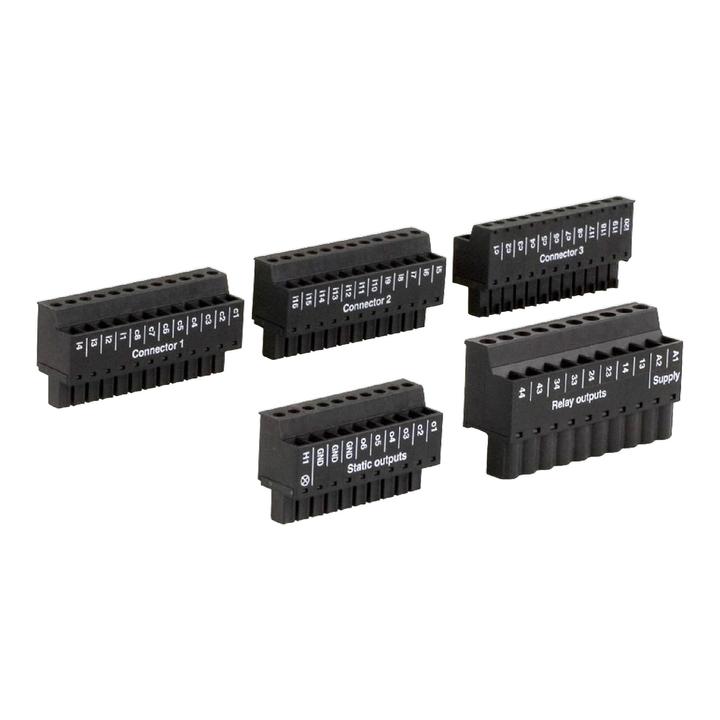

Schneider Electric Screw terminal conn kit for XPS MC32

Order no. < 464-946') 464-946/ and < 464-930') 464-930/ are starter kits. These contain the safety control unit, the XPS-MCWIN configuration software, an 8-pin USB cable with connectors, an 8-pin mini DIN/RJ45 cable with connectors, a 25-pin D-Sub/RJ45 cable with connectors, a set of tension spring connection terminals and a set of screw connection terminals. To connect an XPS MC to a PC for programming and diagnostic purposes: Laptop PC with 9-pin serial port: RS 382-2645 and 544-490. Laptop PC with USB port: 464-962 and RS 218-080. XPS MC, Configurable Safety Control Units, Base Units. Configurable unit for centralized monitoring of multiple safety functions, such as emergency stop, safety interlocks, magnetic safety interlocks, two-hand control units, light curtains, zero speed detection, and enabling switches. Designed as a solution for safety applications where Category 4 of the EN 954-1/ISO 13849-1 standard and SIL 3 requirements of the IEC 61508 standard must be met. Provides an interface for communication with operator terminals (Magelis) or PLC systems. 8 control inputs (standard) Easy visual diagnostics via LEDs on the front panel Communication via Modbus 30 certified safety functions can be assigned to the safety outputs configured using the XPS MCWIN software (order no. < 464-899') 464-899 The required safety function can be selected upon receipt of the product.
