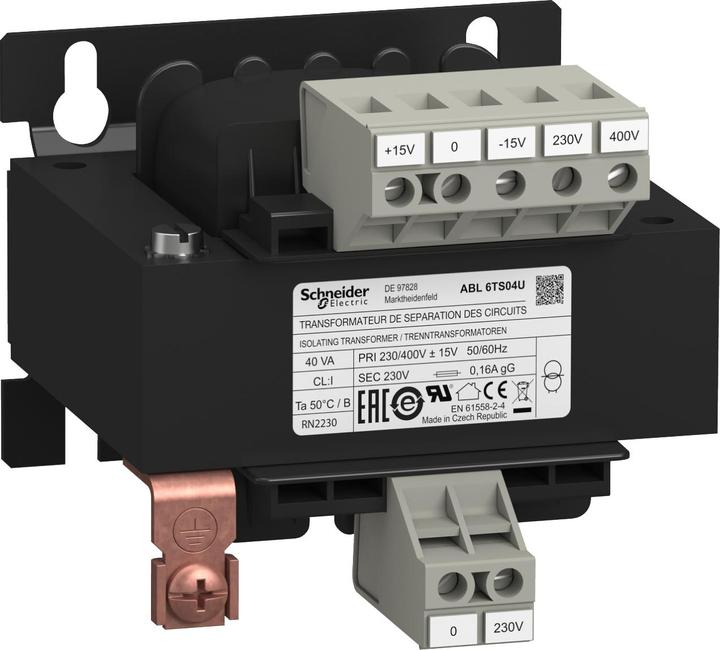

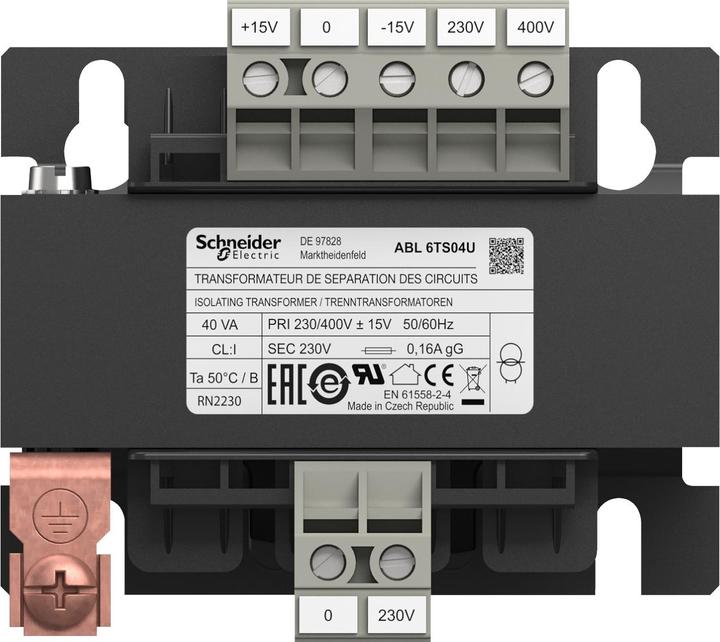

Schneider Electric Safety/Isolation Transformer ABL6TS04U

Manufacturer: Schneider Electric
Designation: Safety/Isolation Transformer 1x230 V, 40 VA
Type: ABL6TS04U
Designed as a Safety Transformer: yes
Designed as an Isolation Transformer: yes
Designed as an Economical Transformer: no
Primary Voltage 1: 230..400 V
Primary Voltage 2: 385..415 V
Secondary Voltage 1: 230 V
Rated Apparent Power: 40 VA
Insulation Class according to IEC 85: B
Short-Circuit Proof: no
Relative Short-Circuit Voltage uk: 11.46 %
Width: 78 mm
Height: 90 mm
Depth: 68 mm
Protection Class (IP): IP20
Ring Core: no
Suitable for PCB Mounting: no
Suitable for Rail Mounting: no
Conductor Material: other

This ABL6 transformer supplies control circuits with alternating current and isolates them from the mains voltage. It has a rated input voltage of 230 V to 400 V AC, a rated output voltage of 230 V AC, and a rated power of 40 VA. It provides a cost-effective way to supply each consumer individually or in groups, for example, in mining and refining. It is ideal for systems powered by low-voltage alternating current, such as motor protection relays and contactors.
