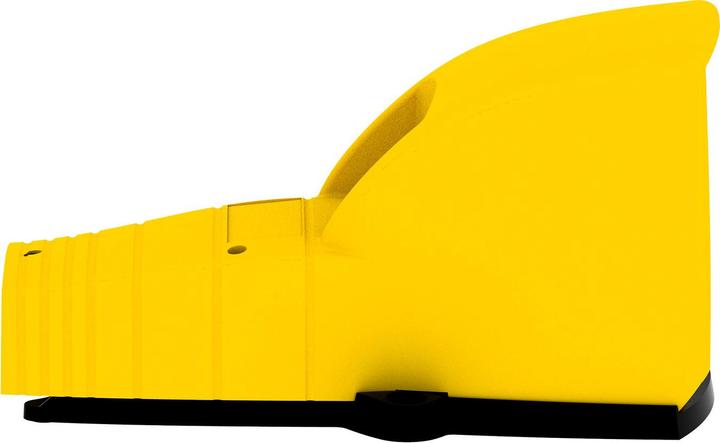

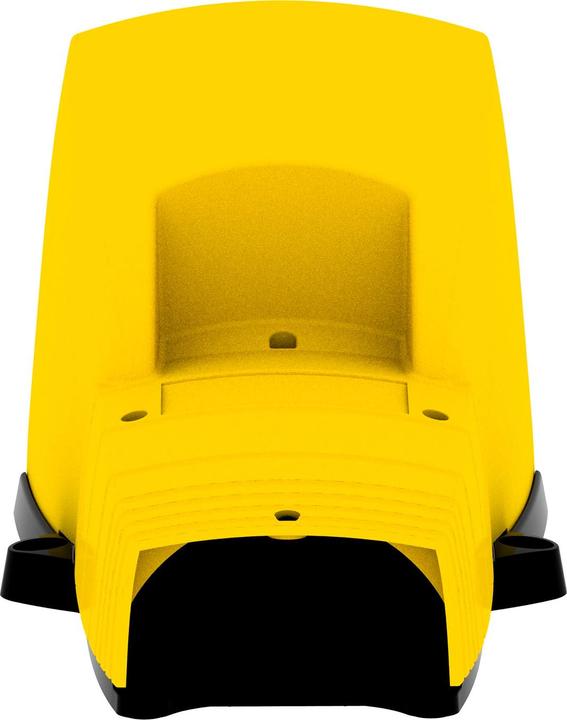

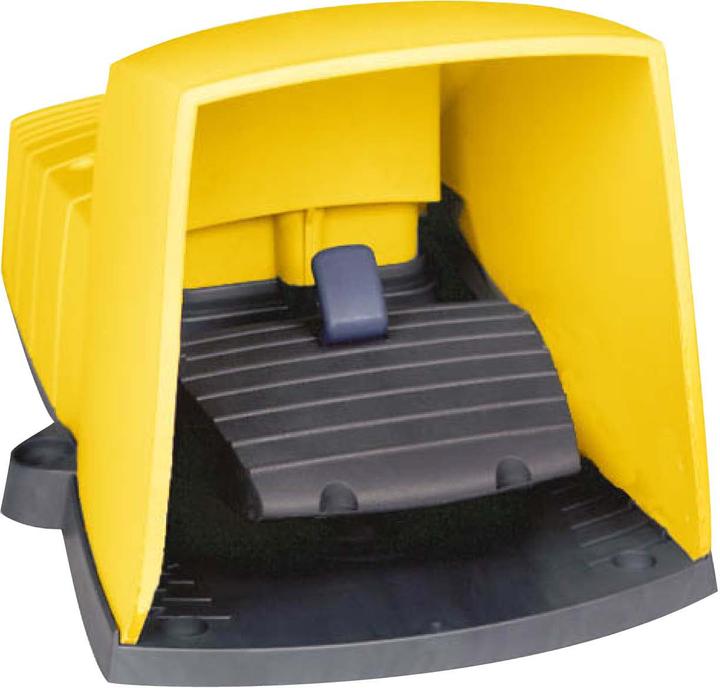

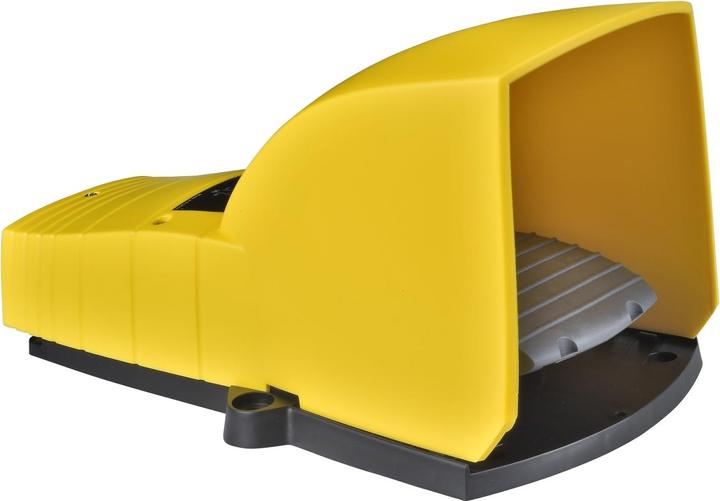

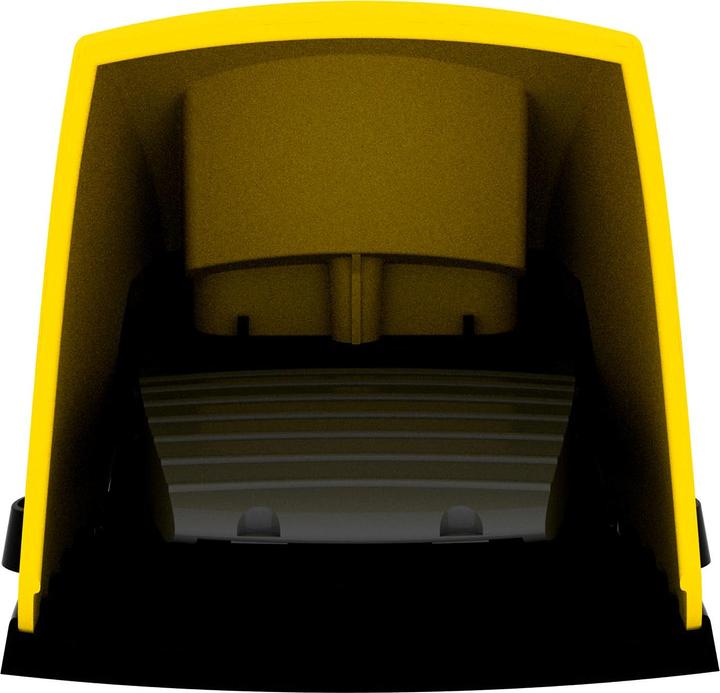

Schneider Electric Safety foot switch with protective hood XPEY5

Schneider Electric Safety Foot Switch XPEY510

Manufacturer: Schneider Electric
Description: Safety foot switch with protective cover
Type: XPEY510
Command type: On or Off
With protective cover: yes
With locking mechanism: yes
Material: Plastic
With protective insulation: no
Color: yellow
Number of switching positions: 1
Number of contacts as normally open: 1
Number of contacts as normally closed: 1
Switching function latching: no
Suitable for safety functions: yes
Rated operational current Ie at AC-15, 230 V: 3 A
Protection class (IP): IP55
Protection class (NEMA): other
Width: 165 mm
Height: 74 mm
Depth: 282 mm

Schneider Electric Safety Foot Switch XPEY510: additional details
The Harmony foot switches XPE provide a convenient solution for turning industrial machines on or off with multiple operating modes such as momentary, toggle, or continuous operation. This plastic foot switch is yellow. It features a pedal that can be locked to prevent accidental activation. The protective cover safeguards the pedal from falling objects, for example. The auxiliary switches include a switching stage with one normally open and one normally closed contact. With a high IP protection class and a wide operating temperature range, it is well-suited for harsh environmental conditions. The certifications and compliance with standards ensure its use in many countries. Thanks to the Green Premium environmental label, you can access detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
