Product details

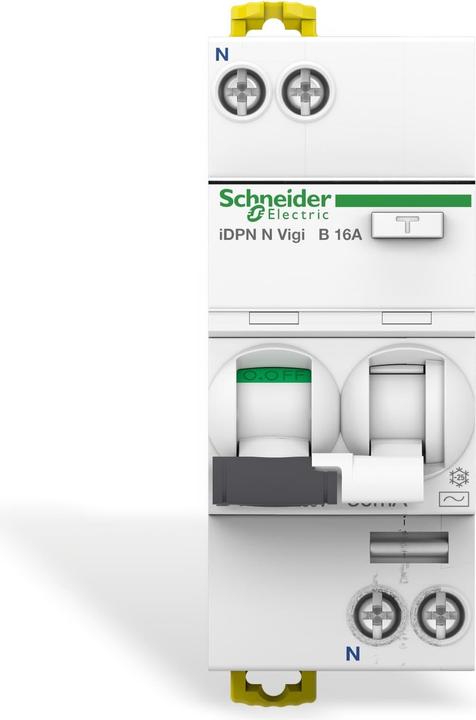

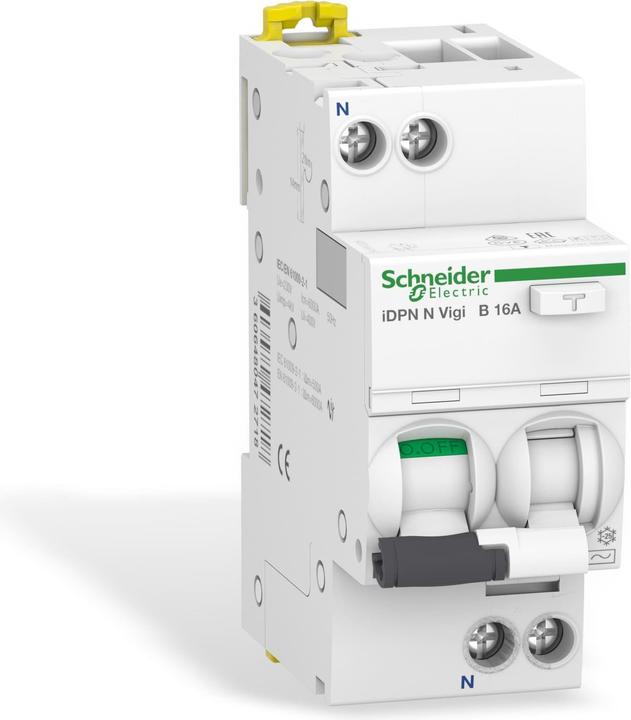

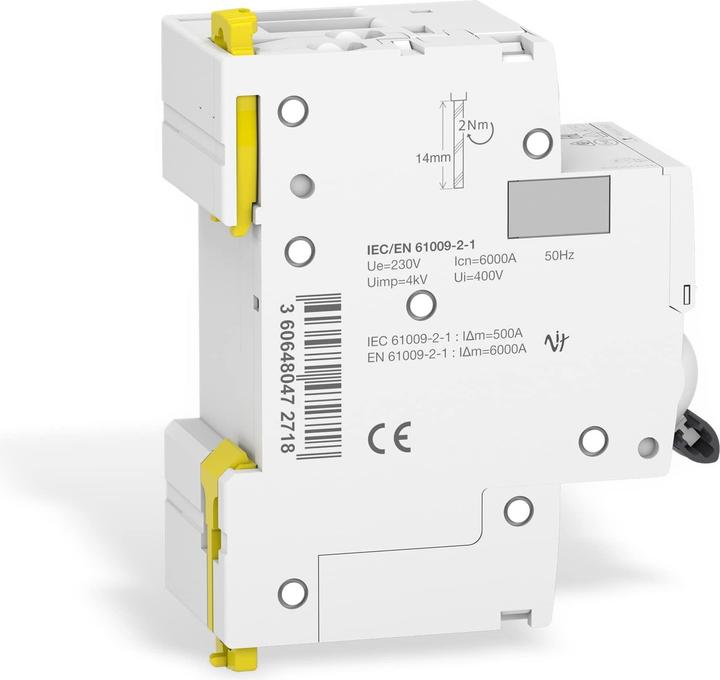

The residual current circuit breaker from Schneider Electric, model A9D56616, is a highly advanced device that functions both as a residual current device (RCD) and as a circuit breaker (MCB). With a rated current of 16 A and an earth fault sensitivity of 30 mA, this switch provides comprehensive protection for final circuits against overloads and earth faults. It is designed for use in alternating current applications with a rated voltage of 230 V and meets the requirements of the EN 61009 standard. The switch is suitable for mounting on a DIN rail and features a compact design that allows for easy installation. Its robust construction ensures high reliability and durability, while the IP20 protection rating makes it suitable for use in dry indoor environments. The A9D56616 is an essential component for the safety of electrical installations and offers an effective solution to prevent electrical accidents.

  • Combination of residual current protection and overload protection
  • Earth fault sensitivity of 30 mA for enhanced safety
  • Robust design with IP20 protection rating
  • Suitable for mounting on DIN rails
  • Complies with the EN 61009 standard for safety and reliability.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
100 mm
Width
36 mm
mounting style
Top-hat rail
number of poles
2
Item number
9725135

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9D56616
Release date
24.9.2018
Sales rank in Category Residual-current device
18 of 15616

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
16 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
100 mm
Width
36 mm
Height
85 mm
Weight
125 g

Package dimensions

Length
10.10 cm
Width
8.80 cm
Height
4 cm
Weight
220 g
