Schneider Electric Residual current circuit breaker
Supplied by
GetGoods DE
Free shipping starting at 50.–

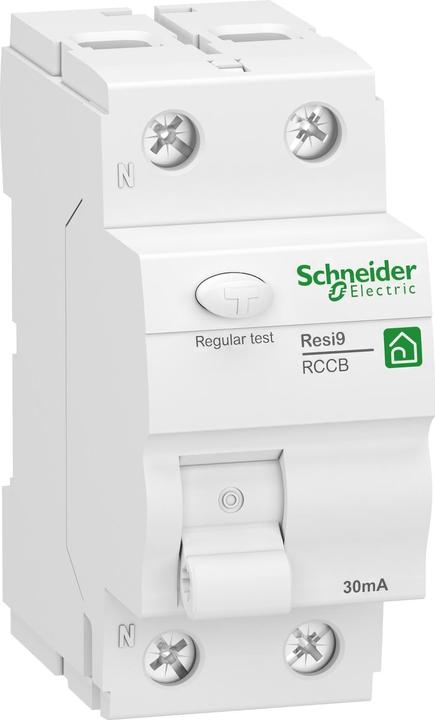

The residual current circuit breaker from Schneider Electric, model Resi9, offers a reliable solution for protection against electrical fault currents. With a rated current of 40A and a rated fault current of 30mA (Type A), this device ensures safe use in various electrical installations. The circuit breaker is designed for an operating voltage of 230V AC and a frequency of 50 Hz. It complies with the EN 61008 standard and provides a high short-circuit strength of 10 kA, making it a robust choice for use in residential and commercial buildings. Installation is straightforward on a DIN rail, and the dual connection option for cables and busbars at the bottom of the device allows for flexible installation. Additionally, the residual current circuit breaker is equipped with a spring mechanism that enables low-wear switching of the contacts, extending the device's lifespan.
Circuit breaker type | Fault current circuit breaker |
Length | 78.50 mm |
Width | 36 mm |
number of poles | 2 |
Mounting type | Top-hat rail |
Item number | 20027276 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | R9R22240 |
Release date | 16.3.2022 |
Exact colour description | RAL 9003 |
Circuit breaker type | Fault current circuit breaker |
Mounting type | Top-hat rail |
number of poles | 2 |
Tripping characteristic | A |
Rated current | 40 A |
Rated current | 0.03 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 440 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | Spain |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 78.50 mm |
Width | 36 mm |
Height | 81 mm |
Length | 8 cm |
Width | 9 cm |
Height | 4 cm |
Weight | 200 g |
