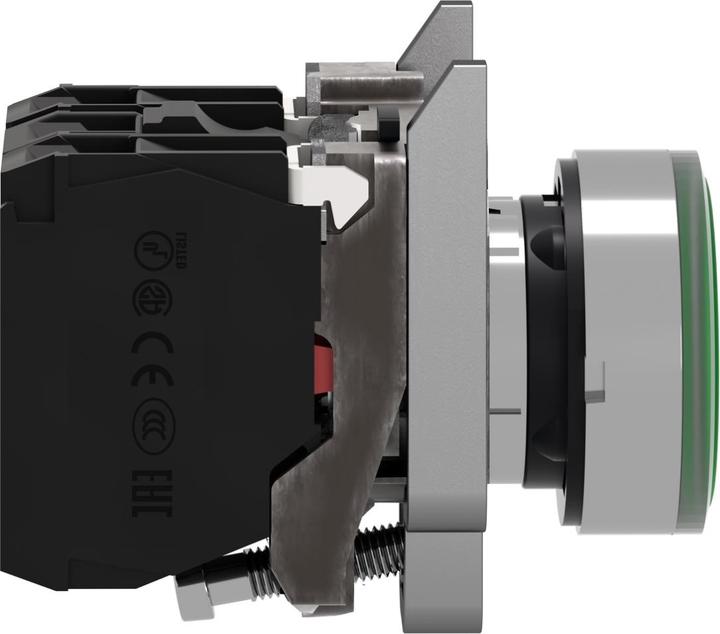

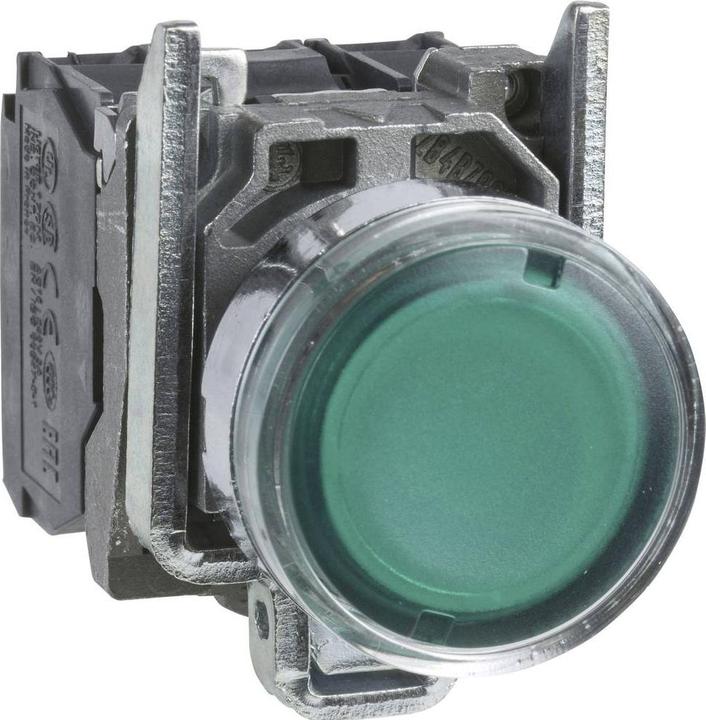

Schneider Electric Pushbutton XB4BW33G5

Schneider Electric Illuminated Push Button XB4BW33G5

Manufacturer: Schneider Electric
Description: Illuminated push button 1S1Ö gn LED-M. 110V
Type: XB4BW33G5
Number of command positions: 1
Button design: flat
Button color: green
Lens design: round
Hole diameter: 22.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 120 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: metal
Front ring color: chrome
Protection rating (IP): IP66
Protection rating (NEMA): 4X

The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements, and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in green features a universal LED and requires a supply voltage of 110-240V AC. The button has 1 normally closed and 1 normally open contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
