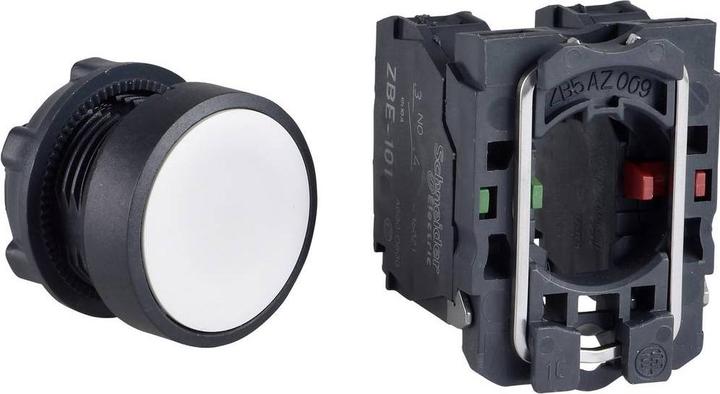

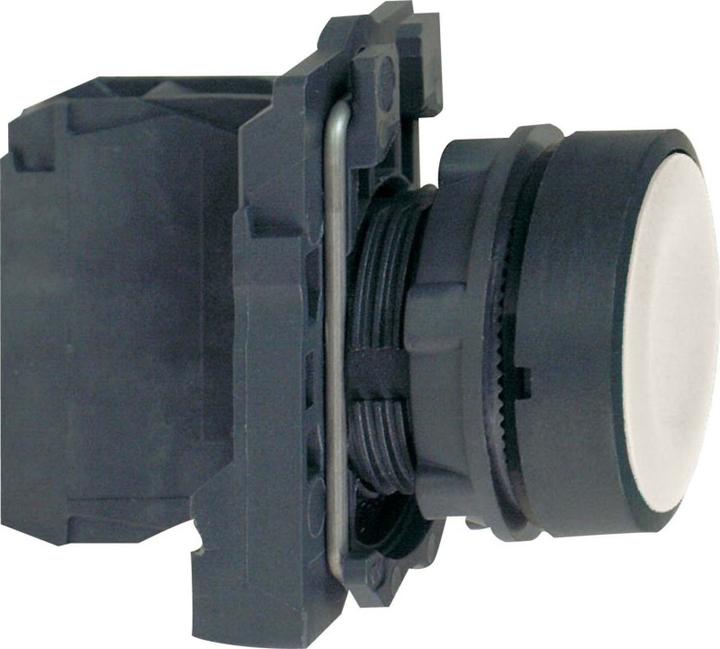

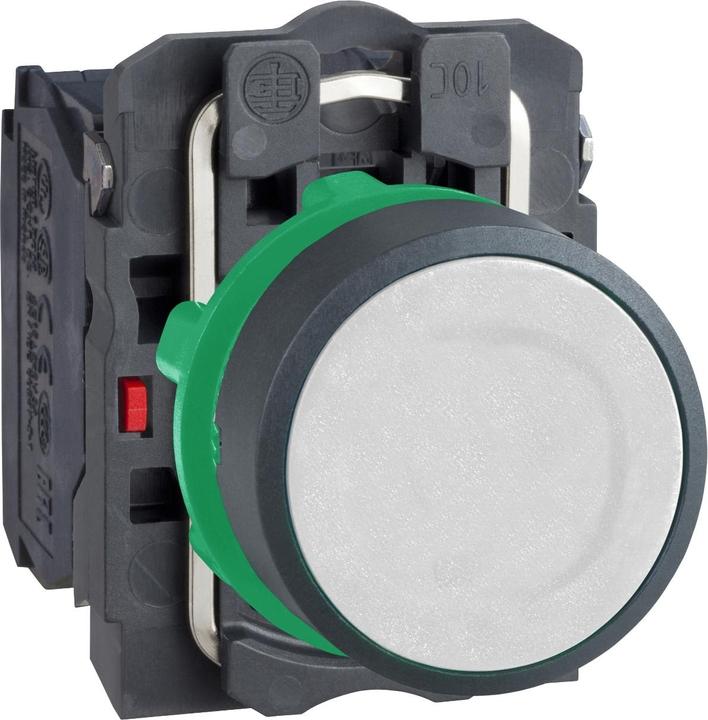

Schneider Electric Pushbutton, white, flat, complete unit XB5AA15

Schneider Electric Push Button XB5AA15

Manufacturer: Schneider Electric
Description: White push button, 1S, 1Ö
Type: XB5AA15
Number of command points: 1
Button shape: flat
Button color: white
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: no
Latch function: no
Momentary: yes
Lamp supply voltage: 0 V
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection type: screw connection
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): 4X

The Harmony XB5 series made of plastic offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, up to emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements and optionally for 30 mm installation dimensions. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. Installed in a 22 mm hole, the device is connected via screw terminals on the back of the product. This push button features 1 normally closed and 1 normally open contact and is unmarked. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
