Schneider Electric PUSHBUTTON LED 120VAC 22MM XB5B +OPTIONS

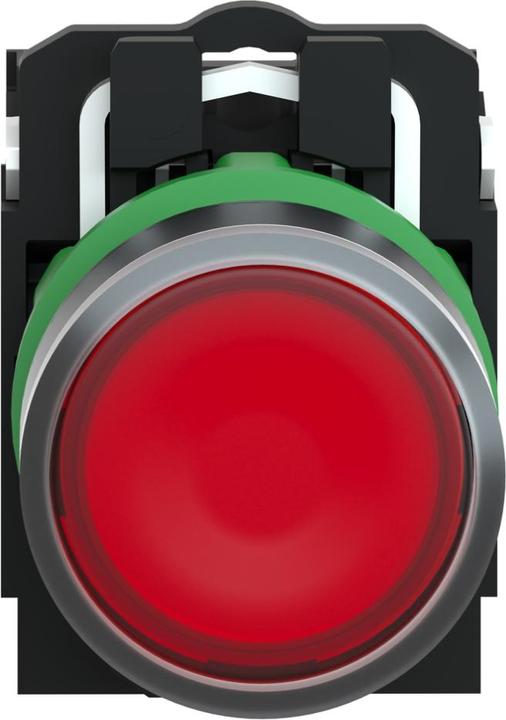

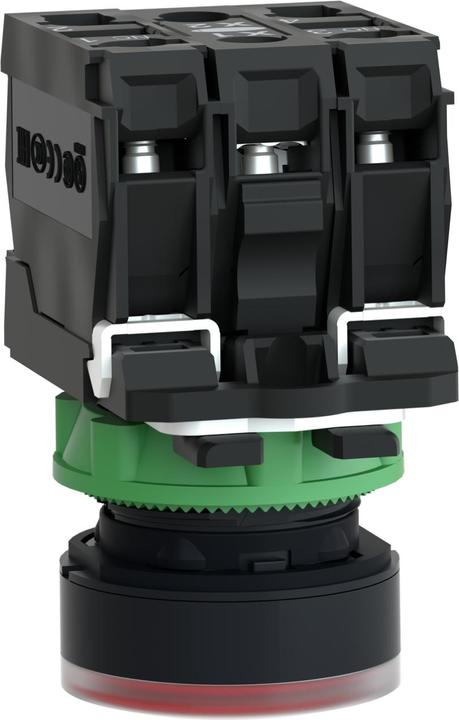

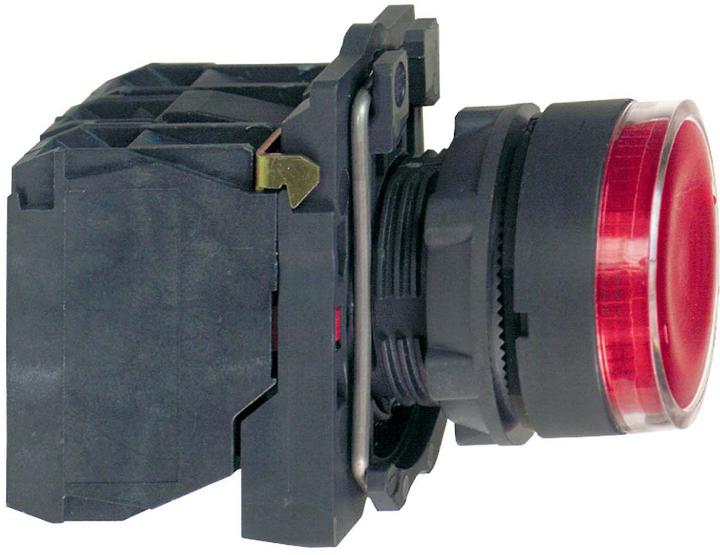

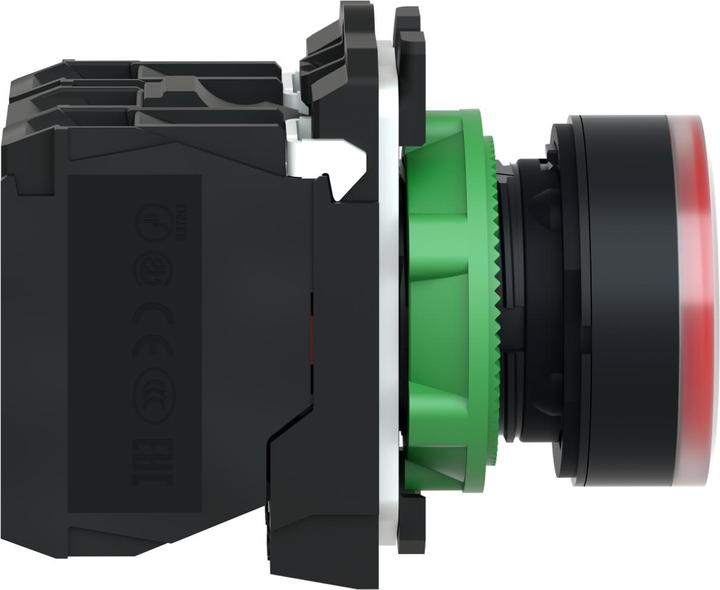

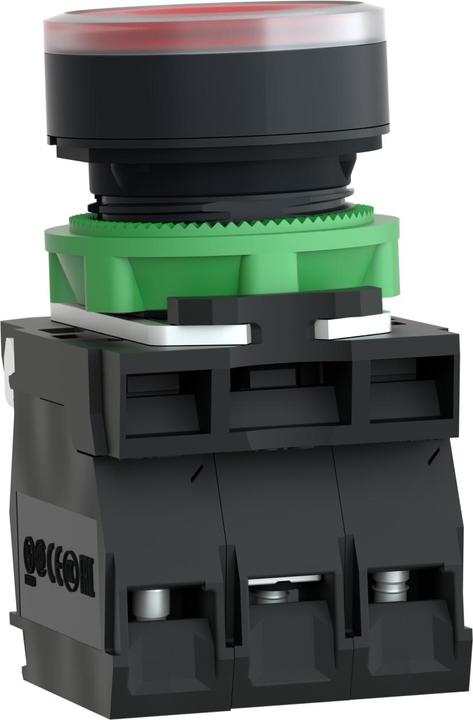

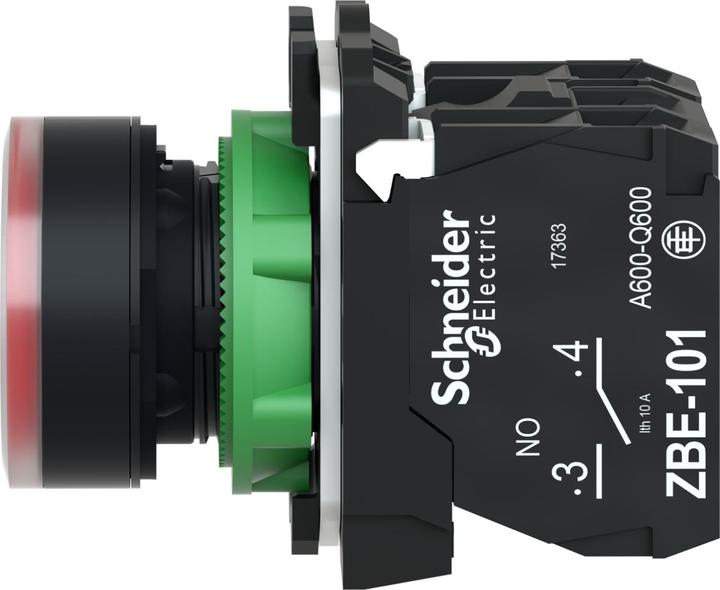

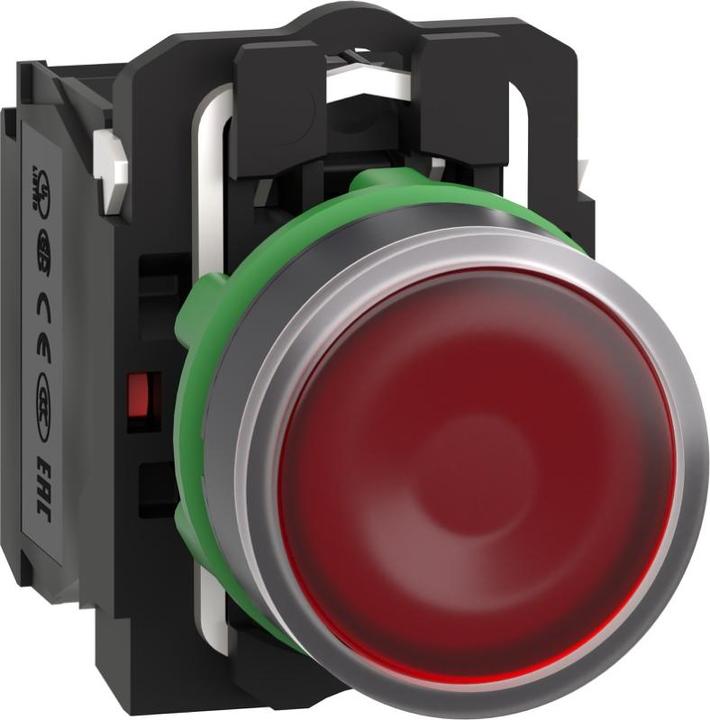

Schneider Electric Illuminated Push Button, Red XB5AW34G5

Manufacturer: Schneider Electric
Description: Illuminated push button, red without latching
Type: XB5AW34G5
Number of command points: 1
Button shape: flat
Button color: red/green
Lens shape: round
Hole diameter: 22.5 mm
Suitable for lighting: yes
Latching switch function: no
Momentary: yes
Lamp supply voltage: 120 V

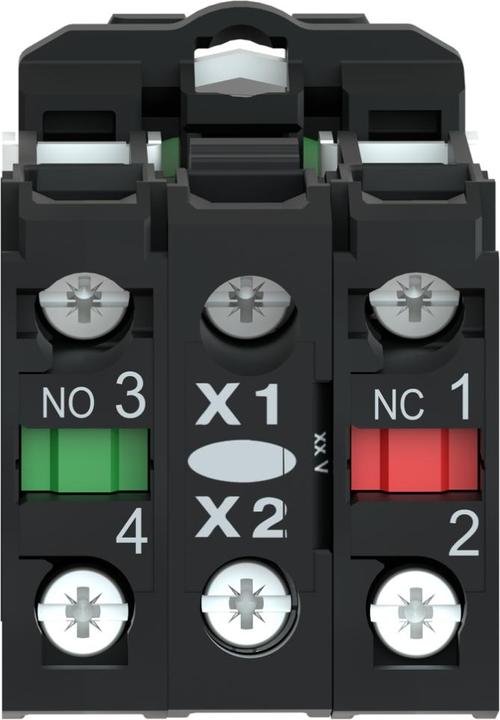

Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Electrical connection type: screw terminal
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP): IP66
Protection class (NEMA): other

The Harmony XB5 series made of plastic offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in red features a universal LED and requires a supply voltage of 120V AC. The button has 1 normally closed and 1 normally open contact. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
