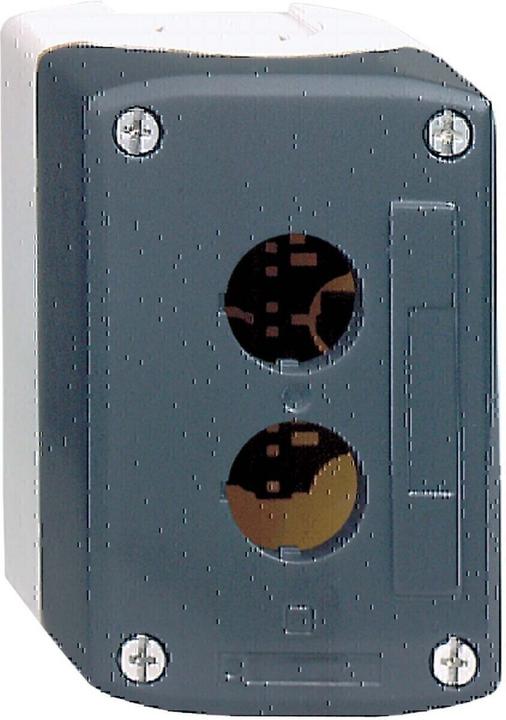

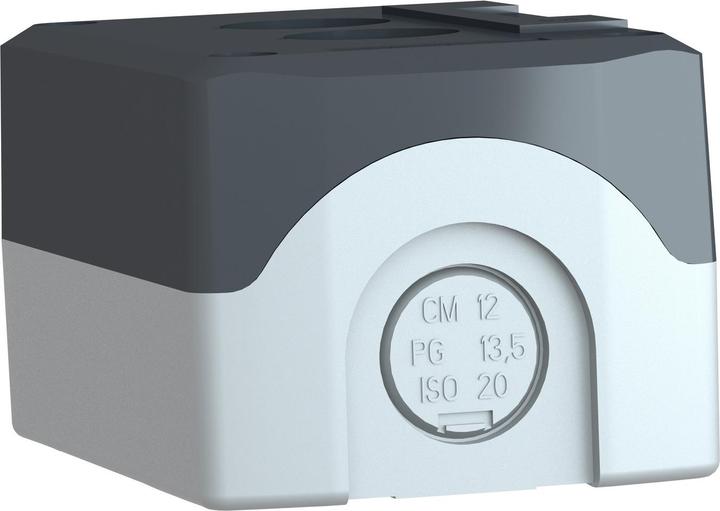

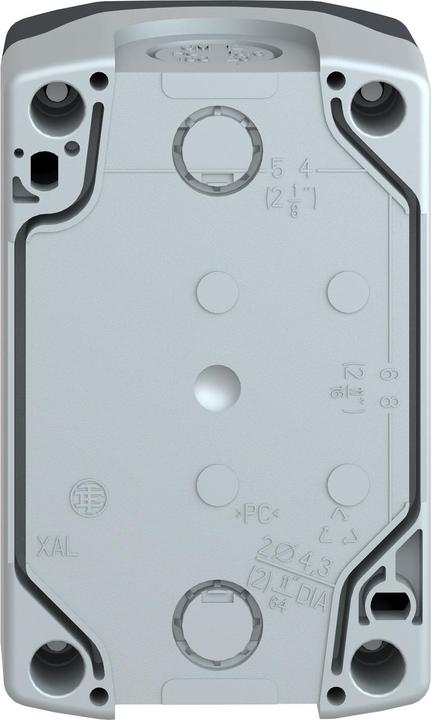

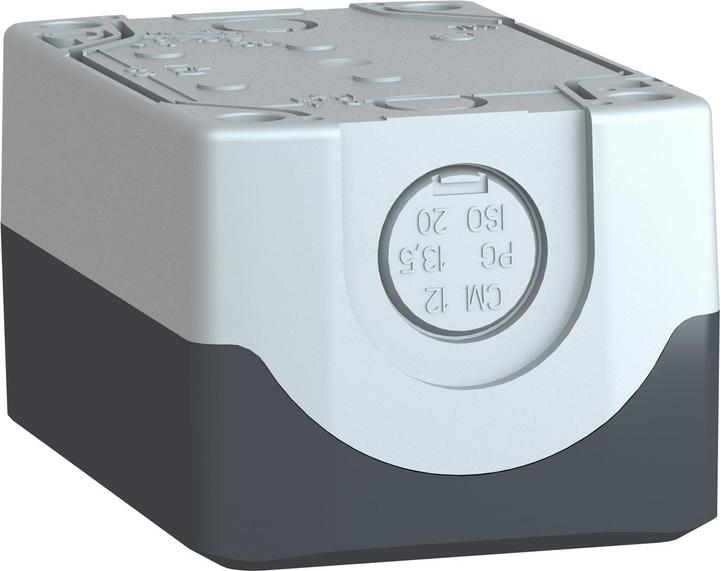

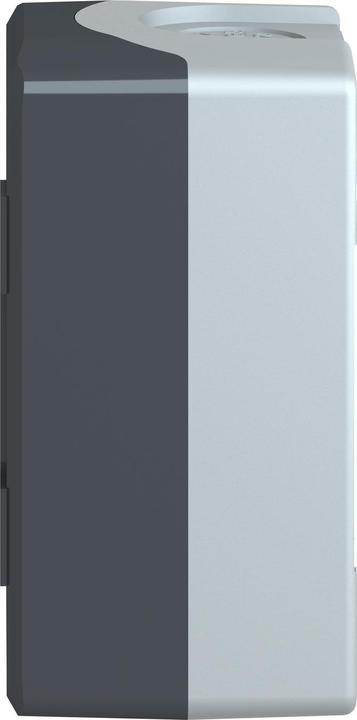

Schneider Electric Pushbutton housing 22mm 2 hole gray

Series: Harmony XALD
Cut-out diameter: 22 mm
Number of mounting points: 2
Housing colour: Grey
Housing marking: None
Housing material: Plastic
Protection class: IP66, IP67, IP69, IP69K
Length: 106 mm
Width: 68 mm
Depth: 53 mm
Operating temperature max.: +70°C
Operating temperature min.: -40°C
Dimensions: 106 x 68 x 53 mm

UL, CSA, CE marking, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520. The XAL pushbutton enclosure is designed for Harmony® 5 switches with a 22 mm cut-out. Schneider's Harmony XAL series is an empty enclosure suitable for plastic pushbuttons, annunciators, selector switches, mushroom head actuators, legend plates, and XB5 series accessories. It is intended for normal environments and features CSA and UL approval. The enclosure is made of polycarbonate and comes in light gray with either a dark gray or yellow cover, along with stainless steel cover mounting screws.
