Schneider Electric Push-button 16mm selector switch
Product details

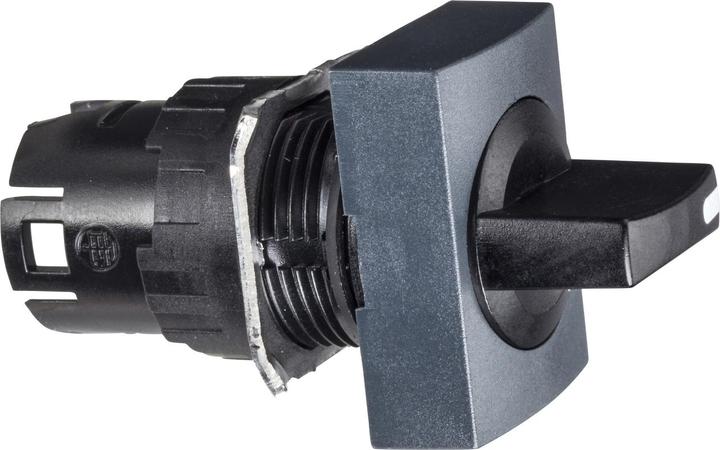

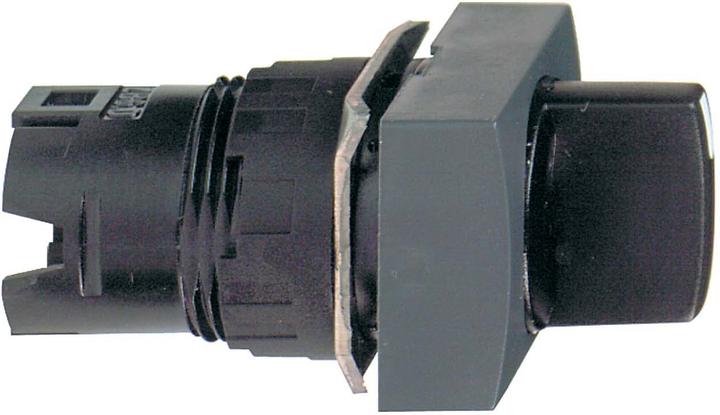

Schneider Electric Front Element ZB6DD22 Manufacturer: Schneider Electric Description: Front element for selector switch D16mm Type: ZB6DD22 Number of switching positions: 2 Design of the actuator: short rotary handle Suitable for lighting: no Color of the actuator: black Lens shape: rectangular Hole diameter: 16.2 mm Opening width: 0 mm Opening height: 0 mm Latching switching function: yes Push button: no With front ring: yes Material of the front ring: plastic Color of front ring: black Protection class (IP), front side: IP65 Protection class (NEMA): other Schneider Electric Front Element ZB6DD22: additional details Front element for Harmony ZB6 selector switch. Plastic cover. 2 positions 60°. Dimensions (WxHxD) 24x18x43 mm, mounting diameter 16 mm, weight 0.018 kg. Shape: rectangular. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with 16mm installation size combines easy installation with great flexibility in minimal space requirements. Certifications according to CSA, CCC, UL, GOST. Product standards according to EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-5, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508. EAN: 3389110776867.
