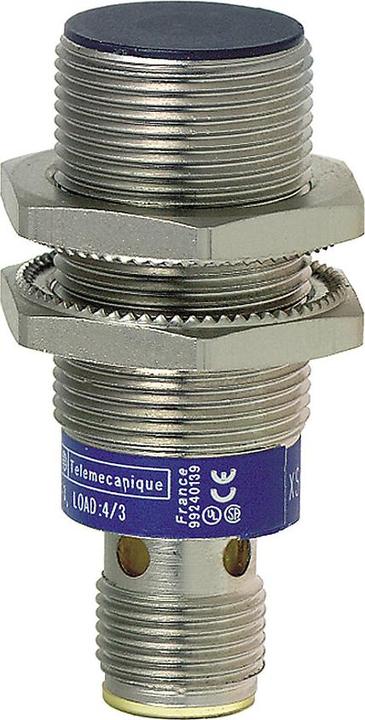

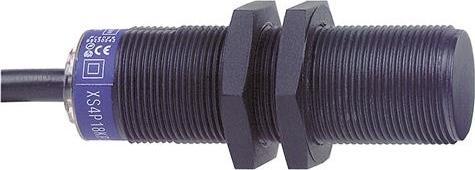

Schneider Electric Proximity switch ind DC Zylinder Gew M12 PNP

XS1 inductive proximity switch M18 in cylindrical format, length 50 mm, housing made of brass, switching distance 10 mm, 12-24 V DC, M12.

Features:

• Length of the sensor: 50 mm
• Diameter of the sensor: 18 mm
• Mechanical installation condition for the sensor: flush
• Switching distance: 10 mm
• Suitable for safety functions: no
• Type of switching function: normally open
• Type of switching output: PNP/PNP
• Type of electrical connection: M12 connector
• Number of semiconductor outputs with signaling function: 1
• Number of contact outputs with signaling function: 0
• Number of safe semiconductor outputs: 0
• Number of safe contact outputs: 0
• Type of actuation: metallic target
• Type of interface: none
• Type of interface for safety-related communication: none
• Housing design: cylinder, threaded
• Housing coating: nickel-plated
• Cascadable: no
• Category according to EN 954-1: 1
• Performance Level according to EN ISO 13849-1: none
• Max. output current at safe output: 200 mA
• Supply voltage: 12 V
• Rated control supply voltage Us at DC: 12 V
• Voltage type: AC/DC
• Switching frequency: 1000 Hz
• With monitoring function for downstream devices: no
• Material of the housing: metal
• Pressure-resistant: no
• Explosion protection category for gas: none
• Explosion protection category for dust: none
• Immunity to magnetic fields: immune to static and alternating magnetic fields
• SIL according to IEC 61508: none
• Width of the sensor: -
• Rated control supply voltage Us at AC 50 Hz: -
• Rated control supply voltage Us at AC 60 Hz: -
• Height of the sensor: -.
