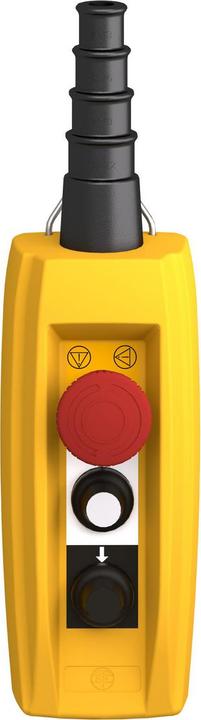

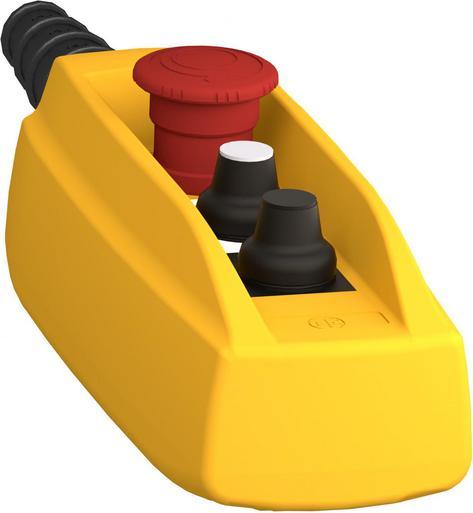

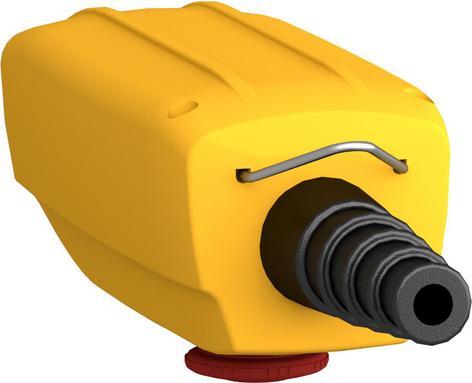

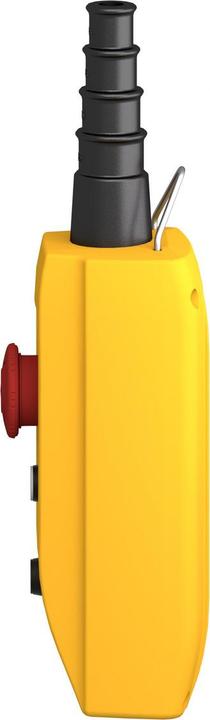

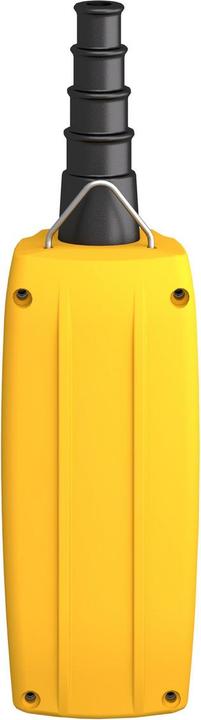

Schneider Electric Pendant station XAC-B, 2 push-buttons 1 emergency XACB3191
Product details
Schneider Electric Pendant Control Station XACB3191
Manufacturer: Schneider Electric
Designation: Pendant Control Station with 2 Control Points and Emergency Stop
Type: XACB3191
Number of Control Points: 2
Number of Speeds: 1
Suitable for Emergency Stop: yes
Type of Movements Executable: lift-convey
Material of Housing: Plastic
Material Quality of Housing: other
Color of Housing Top: yellow
Protection Class (IP): IP65
Protection Class (NEMA): 13
Width: 85 mm
Height: 265 mm
Depth: 74.5 mm
Schneider Electric Pendant Control Station XACB3191: additional details
The XAC B pendant control stations are designed for control circuits. The XAC B crane pendant control stations are built for the toughest applications. Both complete units and individual components are available.
Colour | Yellow |
Switch + button type | Pendant station |
Width | 85 mm |
Item number | 33586606 |
Manufacturer | Schneider Electric |
Category | Buttons + Switches |
Manufacturer no. | XACB3191 |
Release date | 17.5.2023 |
Colour | Yellow |
Exact colour description | Yellow |
Material group | Plastic |
Material | Plastic |
Switch + button type | Pendant station |
Operating mode | Key |
Number of actuation levels | 2 x |
Number of poles | 1 x |
Protection type (IP code) | IP65 |
Switch + push-button Additional function | Lighting |
Country of origin | Czech Republic |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 2 push-buttons 1 emergency stop/emergency off button |
Length | 74.50 mm |
Width | 85 mm |
Height | 265 mm |
