Schneider Electric Not programmed. Receiver XB5R, 24 Vdc

Schneider Electric Push Button Set 24V DC XB5RFB01

Manufacturer: Schneider Electric
Description: Push Button Set 24V DC
Standard Receiver Type: XB5RFB01
Number of Command Points: 1
Button Design: Flat
Button Color: Black
Lens Design: Round
Hole Diameter: 22.5 mm
Suitable for Lighting: No
Latching Switching Function: No
Momentary: Yes
Lamp Supply Voltage: 24 V
Electrical Connection Type: Other
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP): IP65

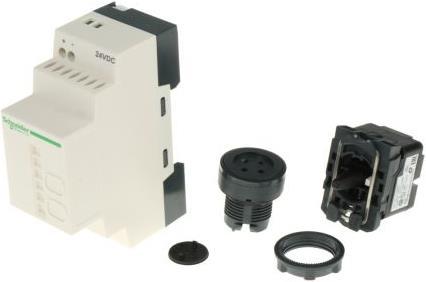

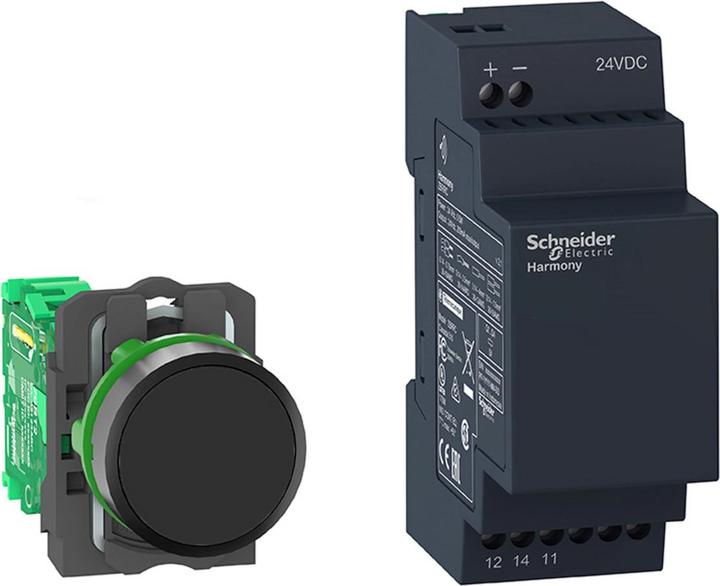

The wireless and battery-free push buttons, switches, and sensors of the Harmony XB4R/XB5R series are used in various applications in the building sector (automatic gates, etc.) and industry (conveyor systems, etc.). The wireless solutions stand out due to advantages such as low installation costs and times, high flexibility and mobility, and maximum availability. This ready-to-use combination package consists of a non-programmable receiver and a wireless push button. The receiver requires a nominal auxiliary voltage of 24V DC. The transmitter and receiver communicate over a globally free frequency band of 2.4 GHz and are approved for ZigBee Green Power. The possible range extends up to 100 m in open space and 25 m in a closed control cabinet. With the existing certifications and compliance with standards, the potential use in many countries is ensured. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
