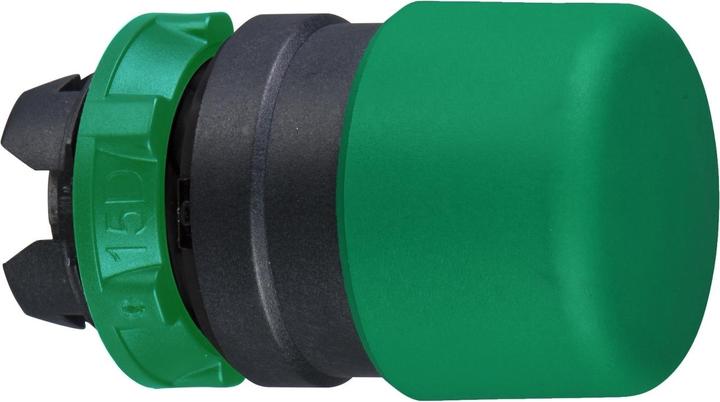

Schneider Electric Mushroom pushbutton actuator with spring return (ZB5AC34)

Schneider Electric Mushroom Push Button ZB5AC34

Manufacturer: Schneider Electric
Designation: Mushroom Push Button D=30 gn
Type: ZB5AC34
Button Colour: Green
Lens Shape: Round
Cap Diameter: 30 mm
Hole Diameter: 22.5 mm
Protection Class (IP): IP66
Protection Class (NEMA): Other
Button Shape: High
Suitable for Lighting: No
With Lighting: No
Latching Switching Function: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Colour: Black
Suitable for Emergency Stop: No
Type of Release: Without

Schneider Electric Mushroom Push Button ZB5AC34: Further Details
This Harmony XB5 30 mm mushroom button is green and operates with a spring return/pulse mechanism. It has a round shape and a protective collar. This 30 mm mushroom-shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly, or where the operator's movements demand maximum ergonomics. It easily combines with the contact blocks of the Harmony series to perform a variety of control functions. Its distinctive 30 mm mushroom shape is clearly visible from a distance. Thanks to its IP66 protection class, it is shock-resistant, dust-tight, waterproof, and vibration-resistant, making it ideal for use in harsh environments.
