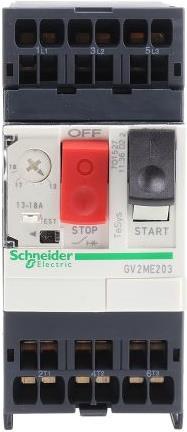

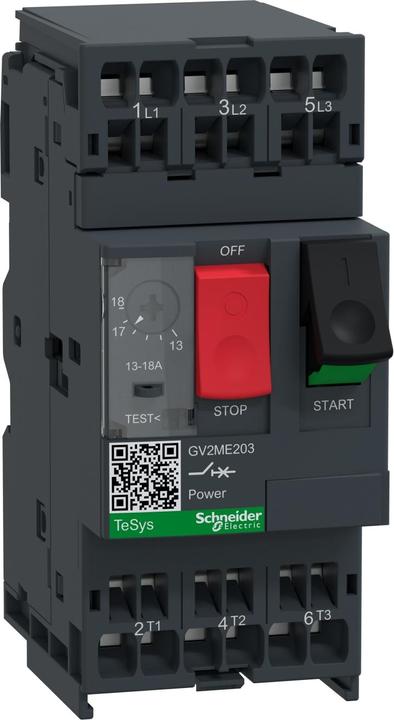

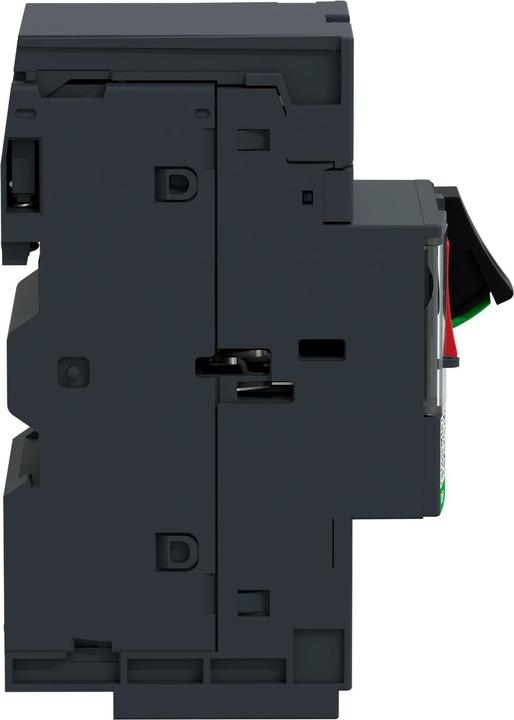

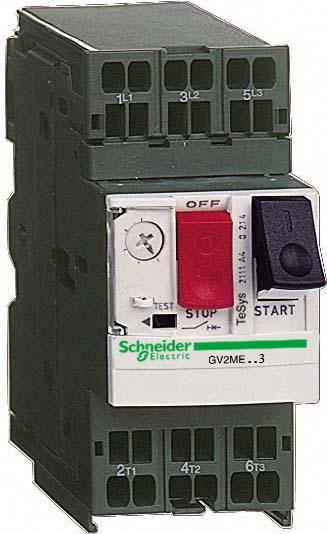

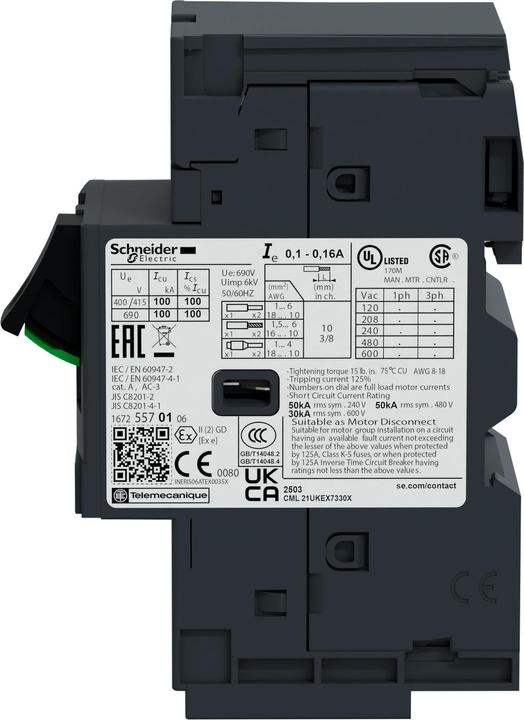

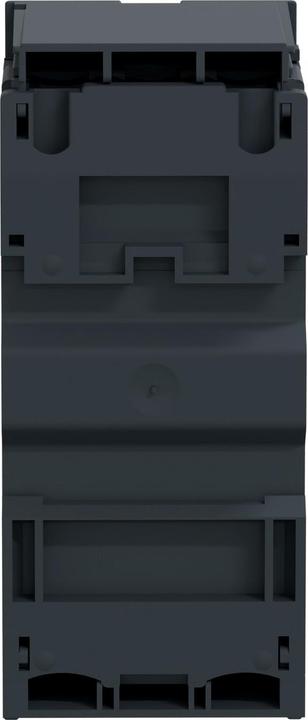

Schneider Electric Motor circuit breaker 18A

Ratings
Delivered between Sat, 7.6. and Thu, 12.6.
Only 4 items in stock at supplier

Product details

Current range: 13 to 18 A
Number of poles: 3P
Range: TeSys
Breaking capacity: 6 kA
Connection type: Spring-cage terminal block
Operating voltage: 500 V
Length: 89 mm
Width: 44.5 mm
Depth: 78.2 mm
Dimensions: 89 x 44.5 x 78.2 mm
Series: GV2M

IEC/EN 60947-2 and IEC/EN 60947-4-1 compliant, Schneider Electric GV2ME motor-protective circuit-breakers are 3-pole thermomagnetic circuit-breakers specifically designed for motor control and protection. These circuit breakers are designed for connection with spring terminals, providing a safe, permanent, and durable connection that can withstand extreme environmental conditions, vibration, and shock. They are even more effective when conductors without ferrules are used. Each terminal can accommodate two independent conductors. Spring terminals allow for push-button operation and can also be used for disconnection.

Key specifications

Circuit breaker type
Motor protection switch
Length
78.20 mm
Width
44.50 mm
number of poles
3
Item number
9728089

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
GV2ME203
Release date
24.9.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Motor protection switch
number of poles
3
Tripping characteristic
Sluggish ---
voltage type
AC/DC
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
78.20 mm
Width
44.50 mm
Height
101 mm
Weight
280 g
