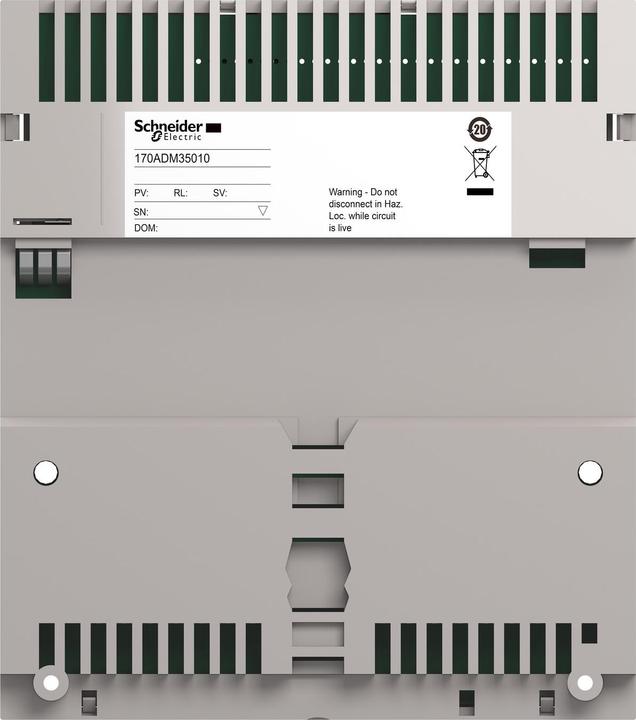

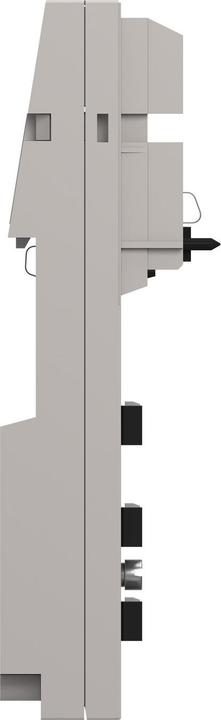

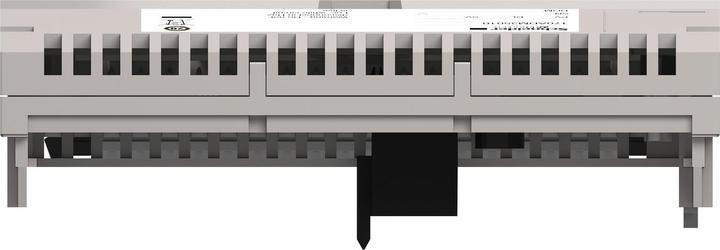

Schneider Electric Modicon Momentum 16 DI/16 DO Base 24VDC

Manufacturer series = 170AD
Number of inputs = 16
Number of outputs = 16
Input type = Discrete
Output type = Discrete
Number of inputs/outputs = 16
Voltage category = 3 → 30 V
Output current = 4 A (group), 500 mA (point), 8 A (module)
Module type = Discrete solid state relay I/O socket DC
Length = 60mm
Width = 141.5mm
Depth = 125mm
Dimensions = 141.5mm x 125mm x 60mm
Supply voltage = 24 V dc

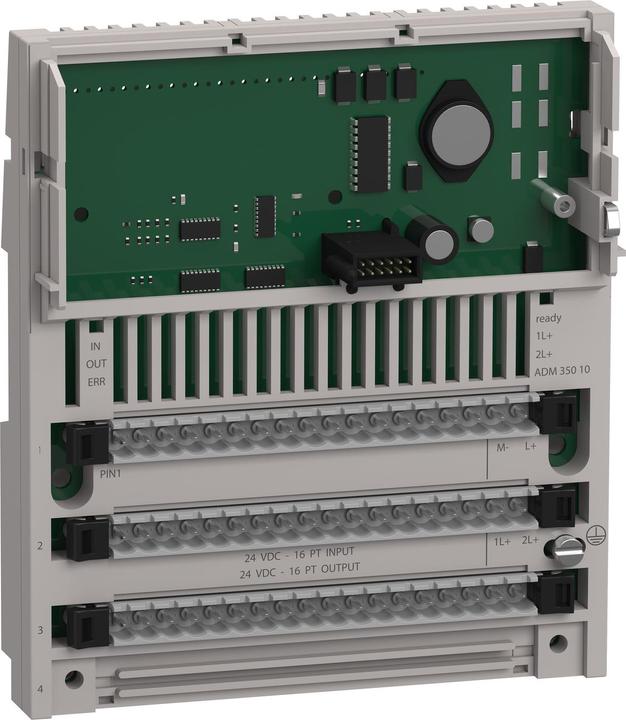

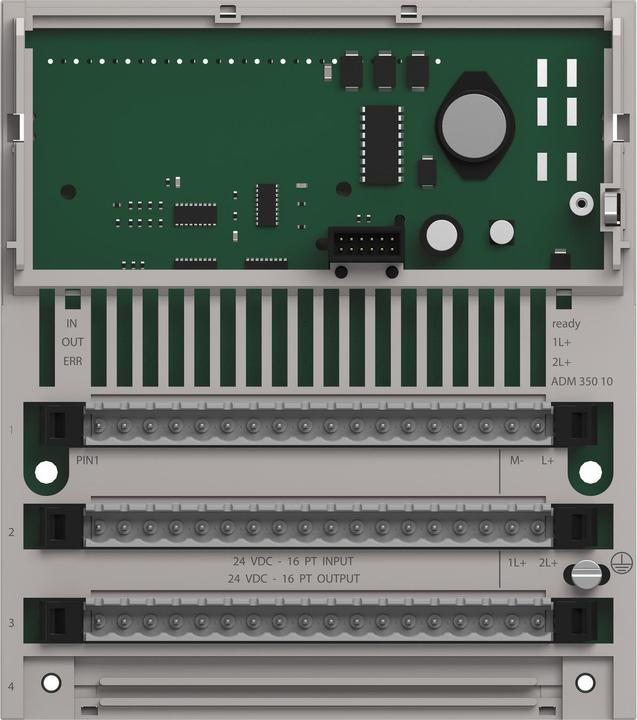

Modicon Momentum discrete I/O module from Schneider. The 170ADM35010 is a high-performance discrete base module with 16 inputs/16 outputs for use with the Modicon Momentum automation platform. It controls discrete field actuators by evaluating information from field-sensitive devices. The module features an internal interface connector, ground screw, interlock and ground contact, LED status indicator, panel mount holes, and DIN rail mount interlock tab. Features and Benefits. 16 discrete inputs in 1 group and 16 discrete outputs in 2 groups of 8. LED status indicators. Panel mounting or DIN rail mounting available. Solid state relay switch output. Positive logic.
