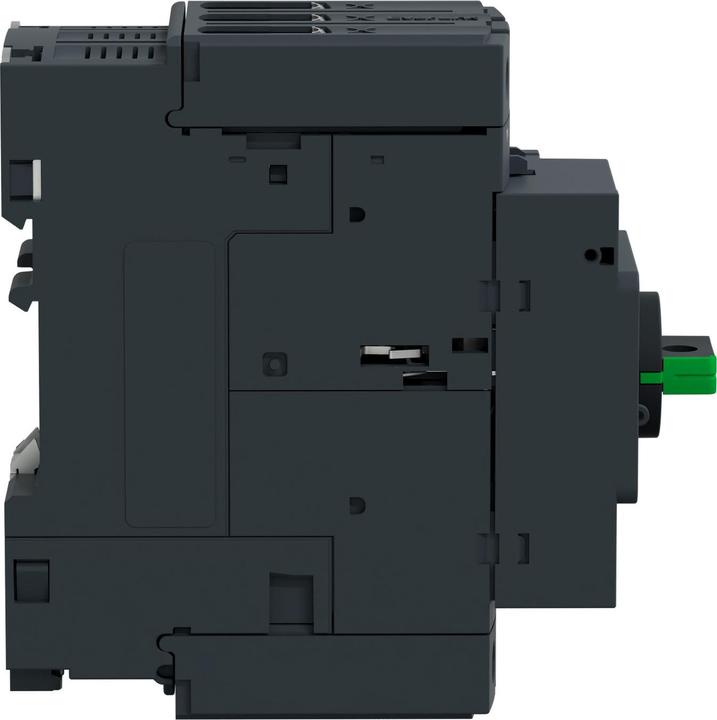

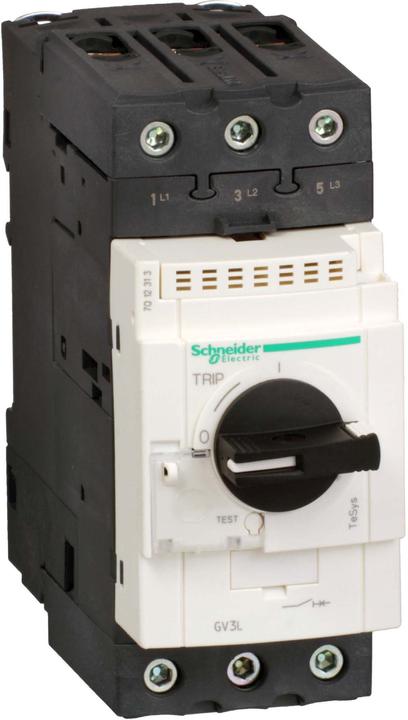

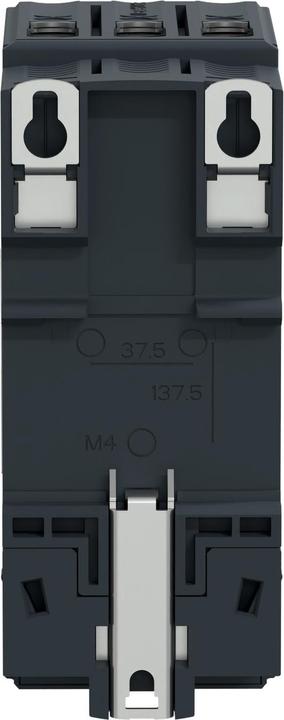

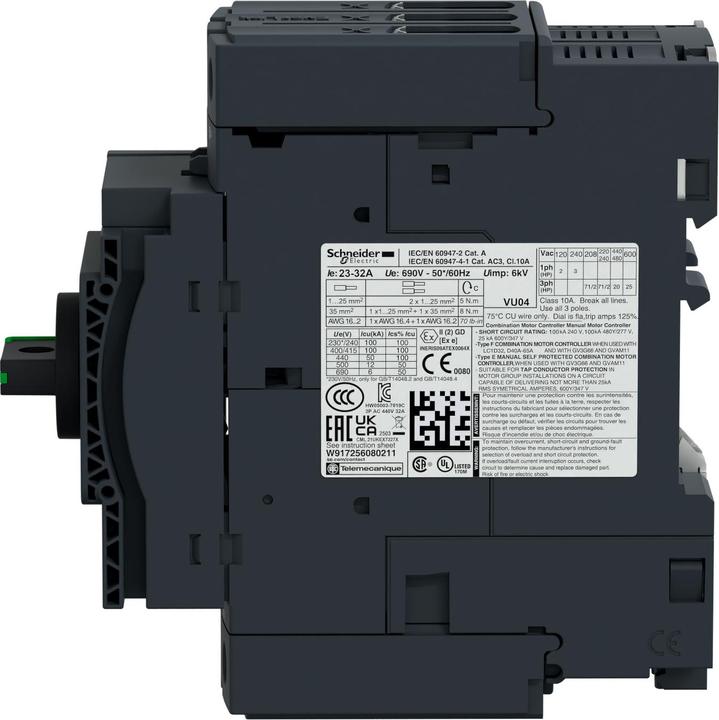

Schneider Electric Magnetic Breaker 50a
Delivered between Sat, 24.5. and Sat, 31.5.
Only 4 items in stock at supplier
Only 4 items in stock at supplier
Product details
Area: TeSys
Operating Voltage: 690 V ac
Width: 55 mm
Series: GV3
Breaking Capacity: 5 kA
Motor Circuit Breaker - GV3L. Thanks to its new power supply connections, the GV3 product line of magnetic circuit breakers guarantees improved reliability of connections. It is designed to provide a constant clamping force that ensures a firm, safe, and durable connection even in very demanding environments. Control and protection for motors from 5.5 kW to 30 kW. High breaking current: 50 kA/400 V from 40 to 65 A and 100 kA/400 V from 25 to 32 A. 3-position, lockable, rotary knob. Test button for tripping on the front. Sealable flap to protect the thermal setting.
Circuit breaker type | Motor protection switch |
Length | 136 mm |
Width | 55 mm |
mounting style | Screws |
number of poles | 3 |
Item number | 10313944 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | GV3L50 |
Release date | 15.1.2019 |
Circuit breaker type | Motor protection switch |
mounting style | Screws |
number of poles | 3 |
Tripping characteristic | Sluggish --- |
voltage type | AC/DC |
Protection type (IP code) | IP20 |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 136 mm |
Width | 55 mm |
Height | 132 mm |
