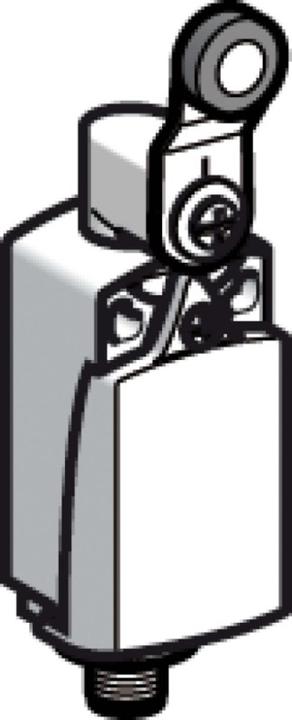

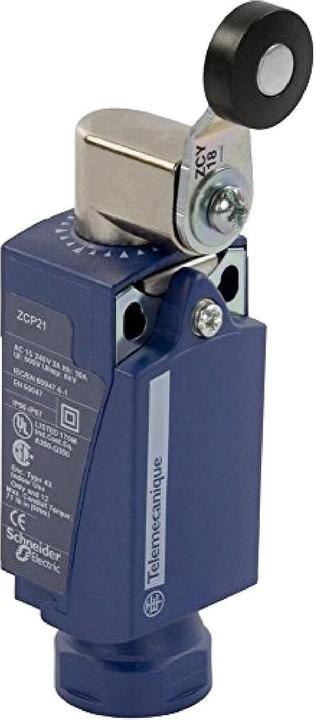

Schneider Electric Limit switch series XCKP

Switch off your workspace in just moments with the Yageo XCKP position switch. With its precision and reliability, it is perfectly suited for various industrial applications. It has a width of 31 mm, a height of 65 mm, and a length of 30 mm, and features a rated operating voltage of 3A/230V AC-15 and 0.27A/230V DC-13. The switch has a "snap action" type mechanism and a forced opening. It is equipped with 1 normally open and 1 normally closed contact and has a protection rating of IP66/IP67/IK04. It has an M12 connection option but is also available in modular design and with ISO M20x1.5, ISO M16x1.5, and Pg11.

Features:

• Sensor width: 31 mm
• Sensor height: 65 mm
• Sensor length: 30 mm
• Rated operating current Ie at AC-15, 230 V: 3 A
• Rated operating current Ie at DC-13, 230 V: 0.27 A
• Switching function: snap action
• Electronic output: no
• Forced opening: yes
• Number of safety-related auxiliary contacts: 0
• Number of contacts as normally open: 1
• Number of contacts as normally closed: 1
• Number of contacts as changeover: 0
• Interface design: none
• Interface design for safety-related communication: none
• Housing shape: rectangular
• Housing material: plastic
• Housing coating: other
• Actuating element design: roller lever
• Actuating element orientation: other
• Electrical connection design: M12 connector
• With status indicator: no
• Suitable for safety functions: no
• Explosion protection category for gas: none
• Explosion protection category for dust: none
• Ambient temperature during operation: -25 °C
• Protection rating (IP): IP66/IP67
• Latching switching function: no.
