Schneider Electric JOYSTICK, XD4PA24

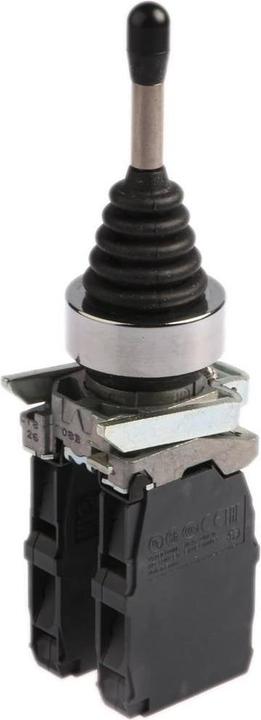

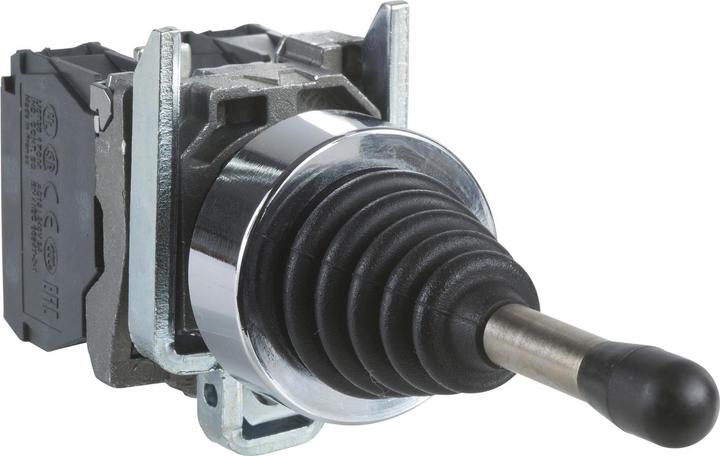

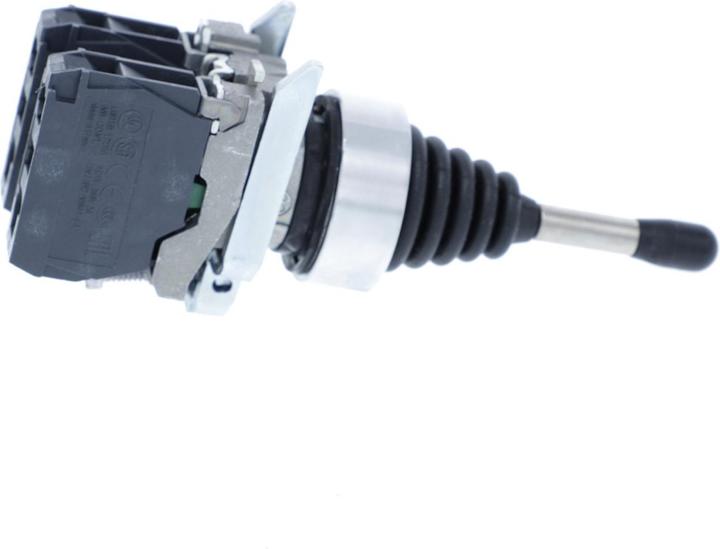

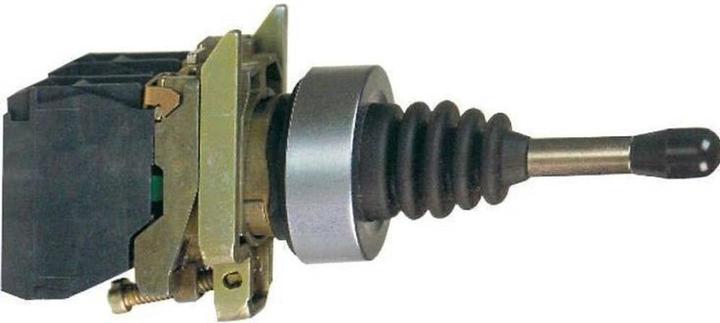

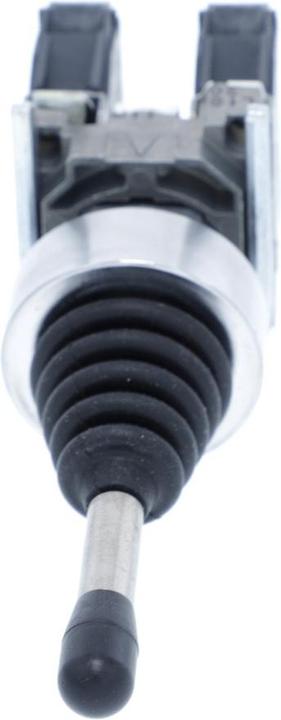

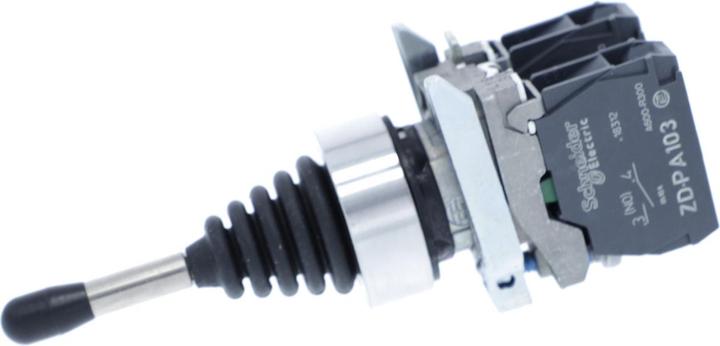

Schneider Electric Joystick XD4PA24

Manufacturer: Schneider Electric
Designation: Joystick 4 Directions with Return
Type: XD4PA24
Rated Operating Current Ie at AC-21: 10 A
Central Mounting, Hole Diameter: 22 mm
Joystick Length: 54 mm
Number of Operating Directions: 4
Number of Switching Positions: 4
Number of Contacts per Operating Direction: 1
With Return to Neutral Position: yes
Locking in Neutral Position: no
Code Generator: no
Configurable Analog Output Signal: no
With Front Ring: yes
Material of Front Ring: Metal
Color of Front Ring: Chrome
Protection Class (IP): IP66
Protection Class (NEMA): Other

Schneider Electric Joystick XD4PA24: Additional Details
The Harmony XB4 series made of metal offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements, and optionally for 30 mm installation size. Due to their quality, flexibility, and extreme robustness, these devices are ideal for most applications in industry and buildings. This joystick in black features 4 directions that can be actuated in a single step and has a return to the neutral position. The device has 1 contact per direction. Mounted in a 22 mm hole, the connection of the device is made via spring terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
