Schneider Electric JOYSTICK, XD4PA12

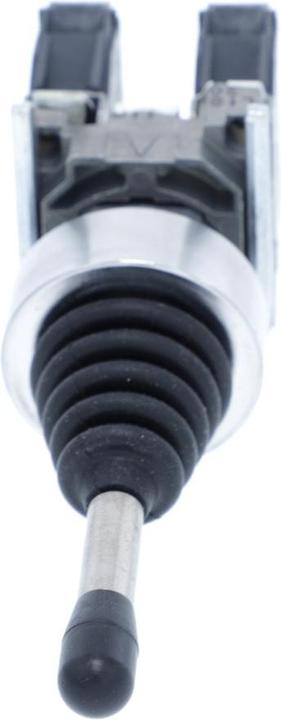

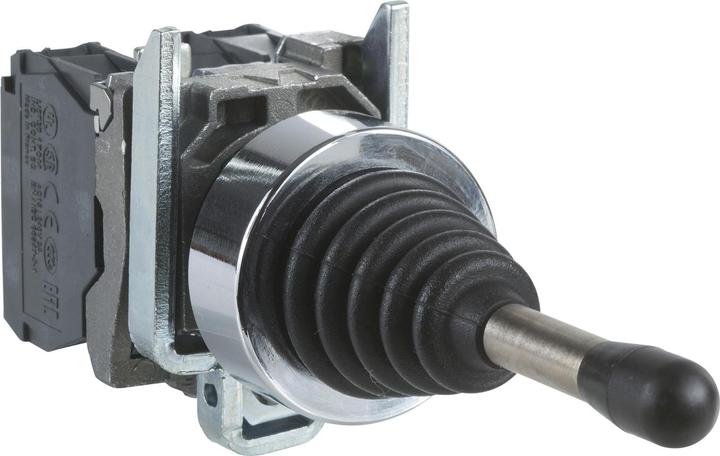

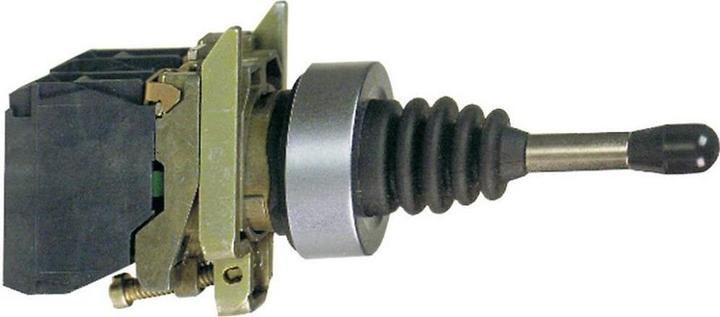

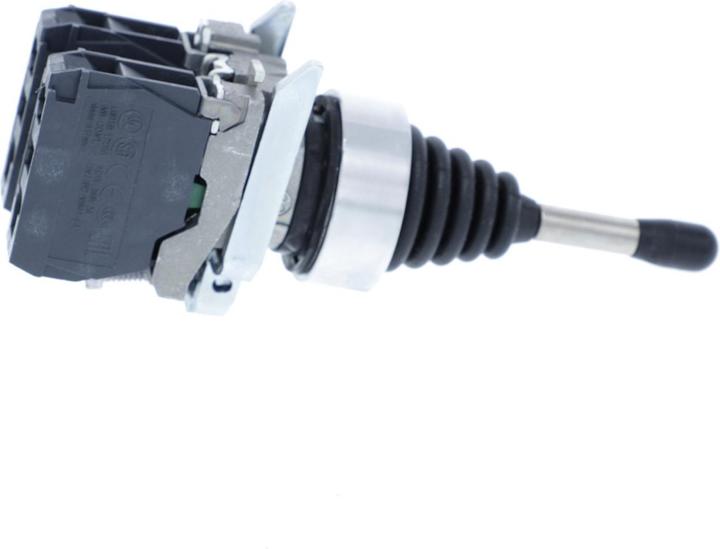

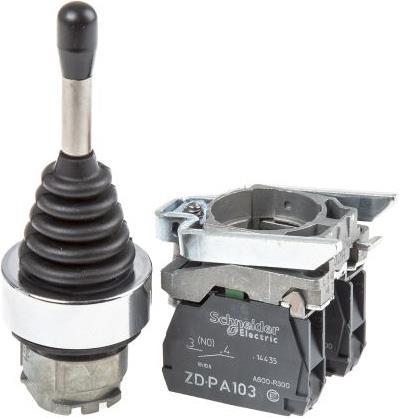

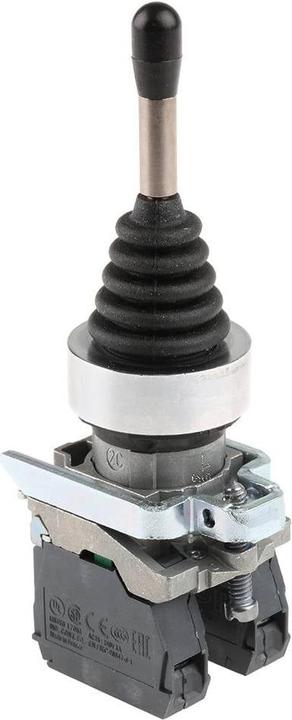

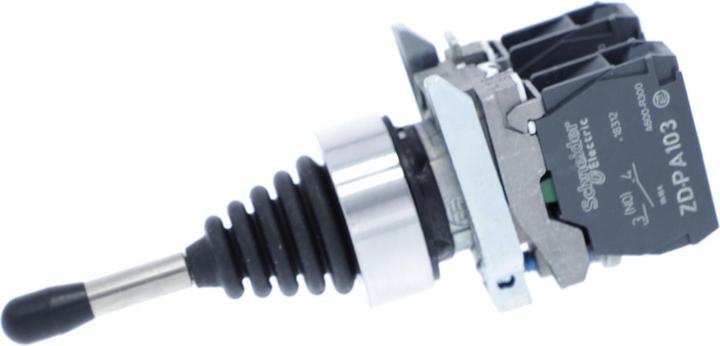

Schneider Electric Joystick XD4PA12

Manufacturer: Schneider Electric
Designation: Joystick 2 Directions without Return
Type: XD4PA12
Rated Operating Current Ie at AC-21: 10 A
Central Mounting, Hole Diameter: 22 mm
Joystick Length: 54 mm
Number of Actuation Directions: 2
Number of Switching Positions: 2
Number of Contacts per Actuation Direction: 1
Return to Neutral Position: No
Locking in Neutral Position: No
Code Generator: No
Configurable Analog Output Signal: No
With Front Ring: Yes
Material of Front Ring: Metal
Color of Front Ring: Chrome
Protection Class (IP): IP66
Protection Class (NEMA): Other

Schneider Electric Joystick XD4PA12: Additional Details
The Harmony XB4 series made of metal offers a wide range of 22 mm complete devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Additionally, due to the modular design of the devices, all components can also be obtained as individual elements and optionally for 30 mm installation dimensions. Due to their quality, flexibility, and extreme robustness, these devices are ideal for most applications in industry and buildings.

This black joystick features 2 directions that can be actuated in a single step and has no return to the neutral position. The device has 1 contact per direction. Mounted in a 22 mm hole, the connection of the device is made via spring terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
