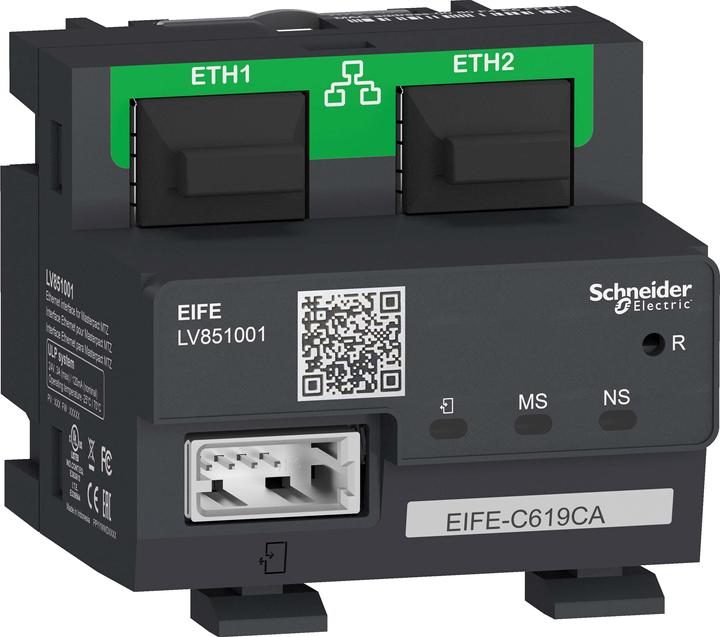

Schneider Electric Integrated Ethernet interface-EIFE LV851001SP

This EIFE is an integrated Ethernet interface module designed for MasterPact MTZ circuit breakers with plug-in technology. It provides a single Ethernet access point and receives all data supplied by the MasterPact MTZ control unit. The data flow is 10/100 Mbps for simple daisy-chain connections via two RJ45 sockets. Connecting to the EIFE interface requires a ULP communication port, which is installed on the chassis of the MasterPact MTZ. The EIFE is mounted on the terminal block of the MasterPact MTZ housing and connected to the ULP port via a ULP cable (not included). The EIFE is powered through the ULP port via the ULP cable. The EIFE is fully integrated into the EcoStruxure Power architecture and the Ethernet-enabled Smart Panels. The EIFE firmware can be updated using the EcoStruxure Power Commission software. Replacement part.
