Schneider Electric Illuminated USB Switch

Accessory variant: USB switch
Interface: USB

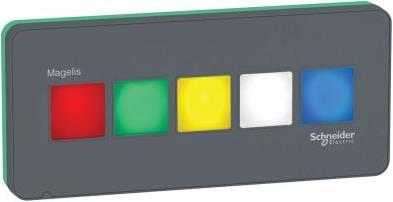

Illuminated USB switch for Magelis HMI. The illuminated USB switch features a unique design for easy visualization and quick confirmation of alarms (wide viewing angle and high brightness). This switch with click feedback is also used as a function key in MMS applications where the touch screen panel requires repeated and reliable operation in dirty environments. This keeps the touch panel clean and protected by avoiding continuous finger contact. The illuminated USB switch can be easily wired, powered via the USB cable, and integrated into the Magelis HMI. This series is ideal for use in industrial applications such as machine tools, packaging, printing, automotive manufacturing, metal processing, food and beverage, and paper production.

Five illuminated function keys for alarm indication and confirmation via 5 multi-colored LEDs. Configuration via Vijeo Designer software. Connection via USB cable. Mounting in standard hole with a diameter of 22 mm. IP65 protection rating.

The following parts are available:
Illuminated USB switch – Order No. 912-0314

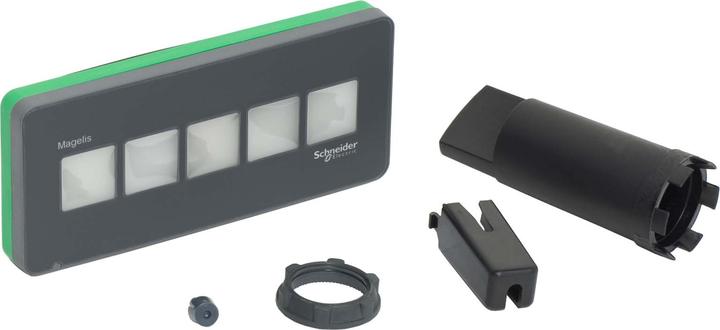

Accessory kit – Order No. 912-0308 – Includes 5 mounting nuts, 5 anti-rotation T-pieces, and 5 USB Type B connectors.
Sheet of insert labels – Order No. 912-0311 – 3 sheets with customizable labels per sheet.
Gaskets – Order No. 912-0318 – 5 gaskets per package.
