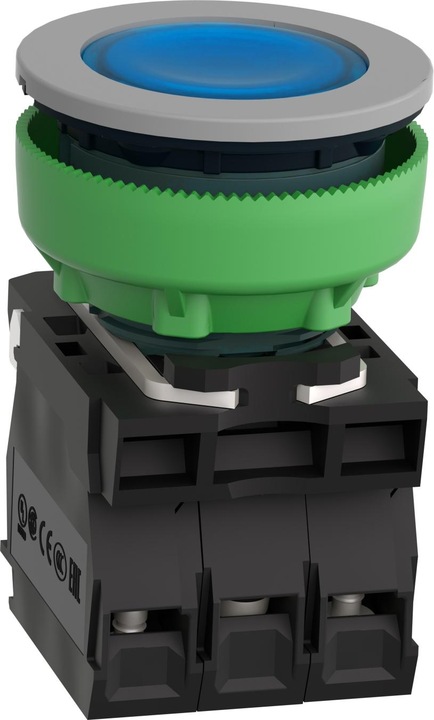

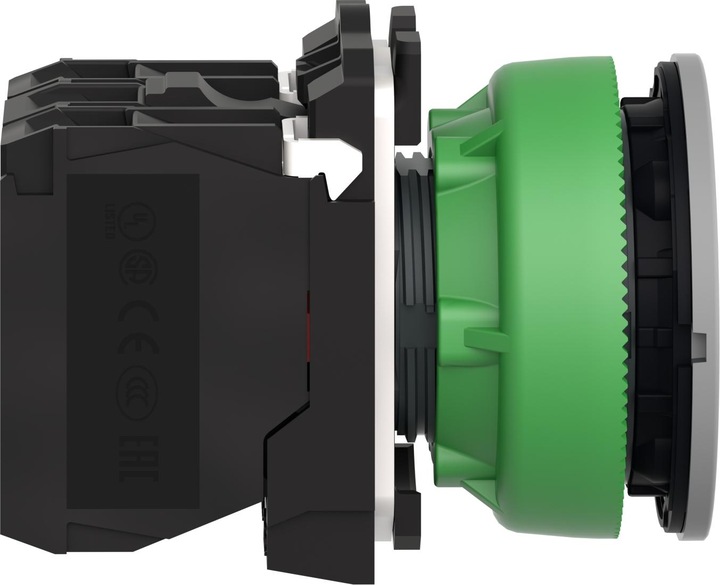

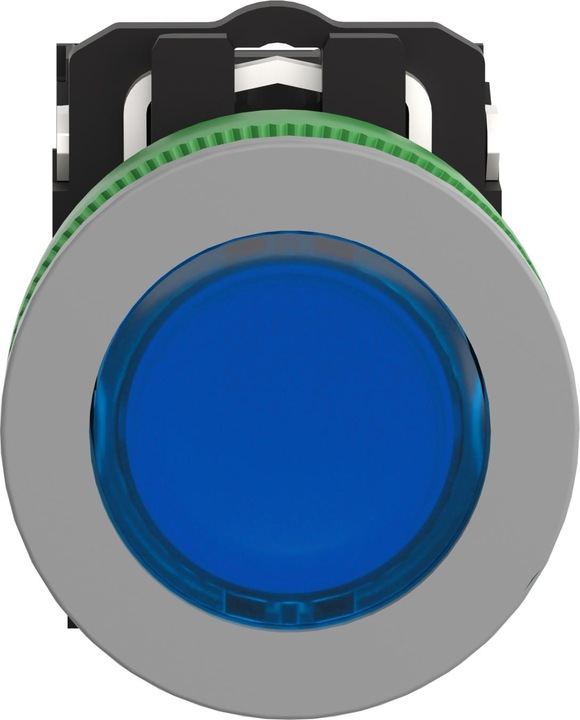

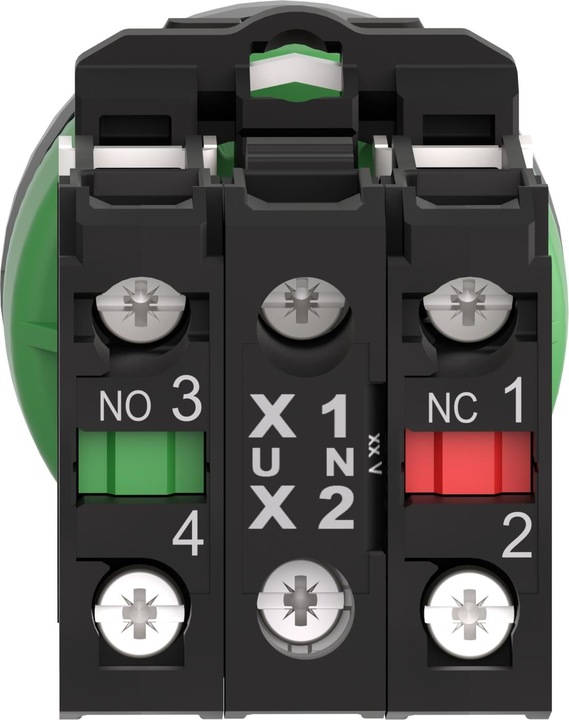

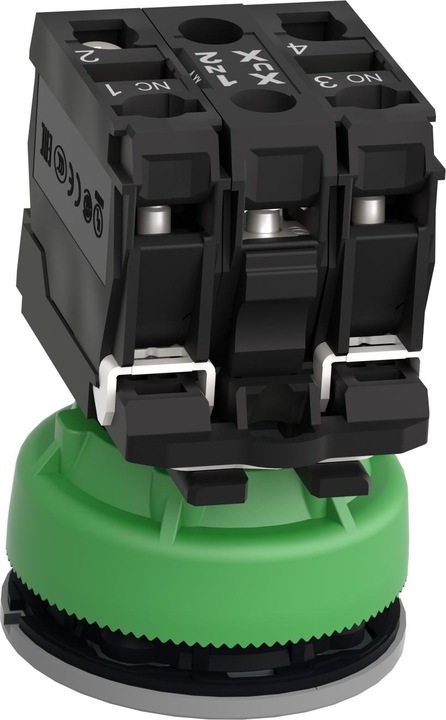

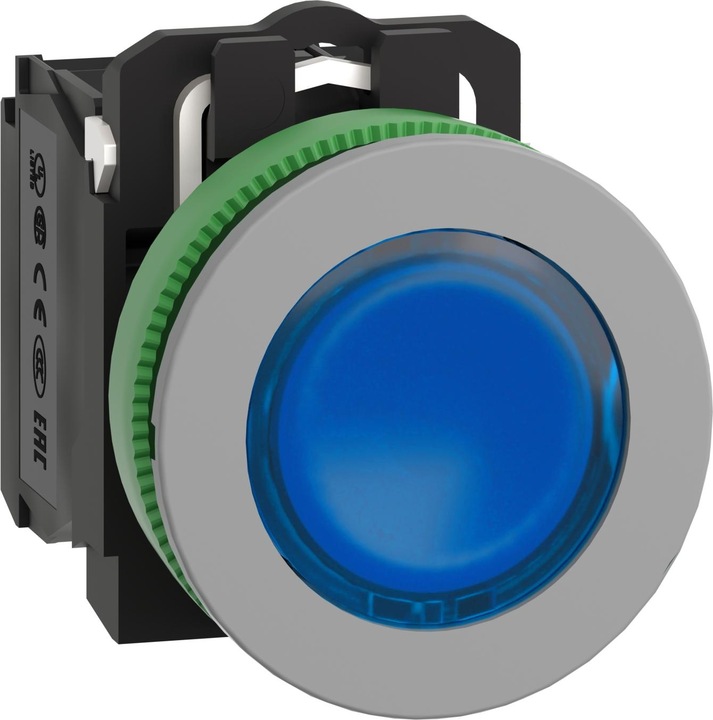

Schneider Electric Illuminated pushbutton compl. flush art. blue 30mm 230V IP69K

Schneider Electric Illuminated pushbutton XB5FW36M5C0 Manufacturer :Schneider Electric Designation :Illuminated pushbutton blue,30mm,230V,1S+1Ö Type :XB5FW36M5C0 Number of command positions :1 Design of button :flat Colour of button :blue Design of the lens :round Hole diameter :30.5 mm Suitable for lighting :yes Switching function latching :no Keying :yes Supply voltage of the lamp :230 V Number of contacts as NO :1 Number of contacts as normally closed :1 Version of electrical connection :Screw connection With front ring :yes Material of front ring :Plastic Colour of front ring :Black Protection class (IP) :IP66 Protection class (NEMA) :4X Schneider Electric Illuminated pushbutton switch XB5FW36M5C0: Further details Illuminated pushbutton switch made of plastic as a complete device and 30mm mounting dimension, Harmony XB5F series for flat mounting. Colour of the illuminated selector switch is blue. For 230-240V AC. The colour of the outer ring is grey. The modular Harmony series with 30mm mounting dimension combines easy installation, efficiency, modern design, flexibility with highest robustness. IP protection classes up to IP69K and ambient temperatures from -40°C to +70°C. Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520. Certifications according to DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping). Product standards according to EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520, EAN: 3606489761684.
