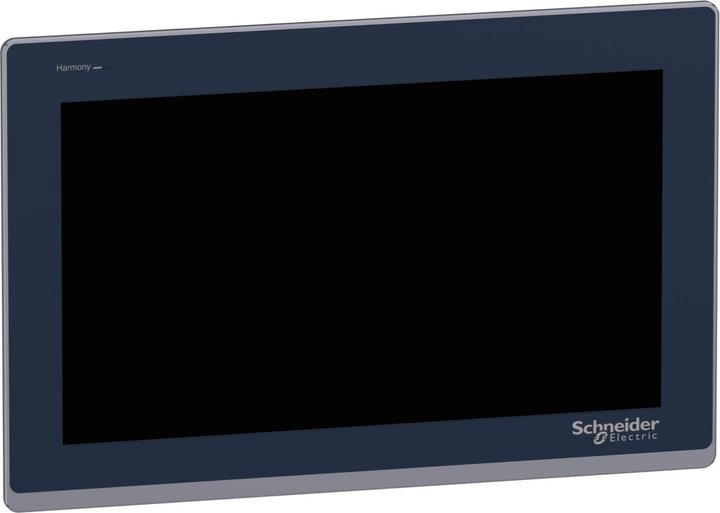

Schneider Electric HMISTW6700 Magelis STW6 Basic Panel

The Basic Web Panel STW6 is a web browser-based standard touch panel from Schneider Electric's Harmony ST6 series. This product line is designed to meet the requirements of operator interfaces for simpler machines, focusing on quick and easy setup as well as flexible and diverse applications. The resistive single-touch display features a 15-inch widescreen with 16 million colors and a resolution of 1366x786 pixels, serving for visualization, operation, and status display of your applications. The web panel is used for displaying web servers and web visualizations. The user interface on the HMI is based on CoDeSys web visualization. With multiple interfaces (2 x Ethernet with switch function for daisy chaining, 1 x USB Type A), optimal connectivity is ensured. The external dimensions of the display are 412 mm (width) x 226 mm (height) x 50 mm (depth) with a panel cut-out of 304 mm x 250 mm and a panel thickness of 1.6 to 5 mm. The product meets the protection class IP65F, Type 1, Type 4X (indoor use only), Type 12, and Type 13 (when properly installed in a housing). It also complies with standards such as CE, China RoHS, REACH, KC, EN (61000-6-4/61000-6-2/61131-2), UL 61010-2-201, and CSA C22.2 No 61010-2-201.
