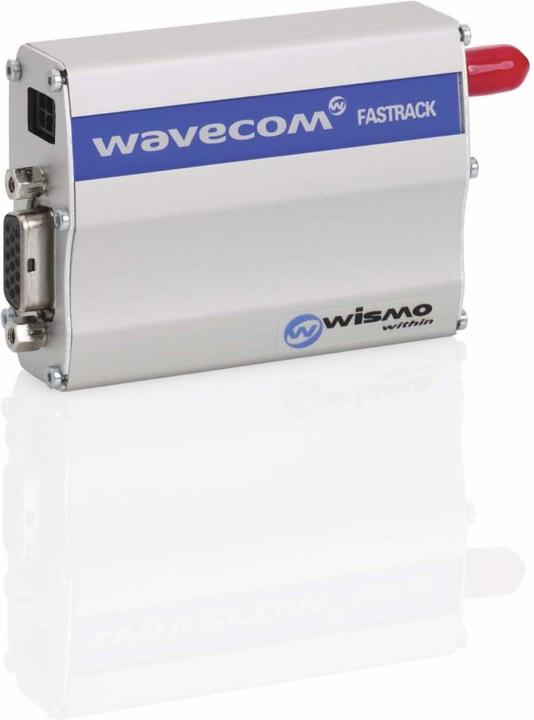

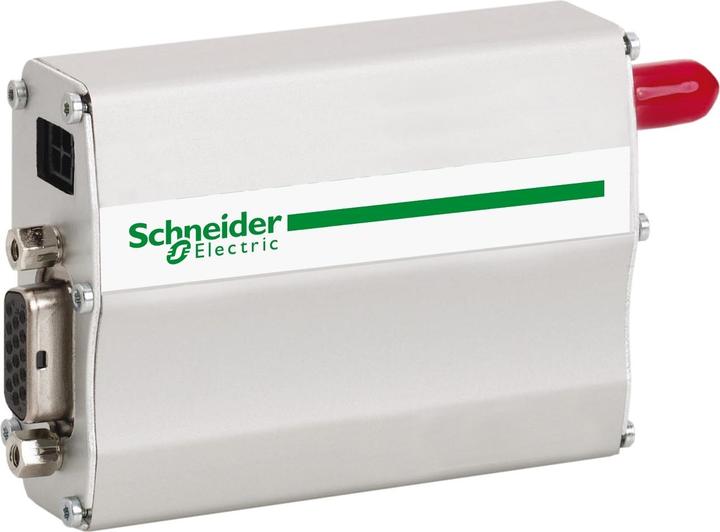

Schneider Electric GSM modem for PLC

Voltage category: 12 to 24 Vdc
Module type: GSM modem
Length: 73 mm
Width: 54.5 mm
Depth: 39.5 mm
Maximum operating temperature: +70 °C

The Zelio Logic alarm software is compatible with Windows 98/NT4/2000/XP. The remote communication module is a new offering for remote communication of the popular series of Zelio Logic Smart Relays from Télémécanique, enabling monitoring or remote control of unmanned applications. The communication range includes a communication interface module that connects between the Smart Relay and a modem. This module manages the address book and all alarm states. It supports GSM or an analog modem (SIM card required) as well as the Zelio Logic alarm software.

Examples of use:

• Monitoring of lifting pumps and buildings housing livestock (ventilation, feed levels, etc.)
• Refrigeration units and washing systems
• Remote control of lighting in parking lots and warehouses
• Remote control and monitoring of heating systems
• Alarm for full waste compactors or required maintenance
• Receiving alarm notifications via SMS to mobile phones or email addresses
• Sending instructions to remote stations from mobile phones or receiving status information
• Transferring or uploading a program between PC and remote station
• Updating firmware on the remote station from the PC
• Changing conditions for sending alarms, phone numbers, and email addresses.
