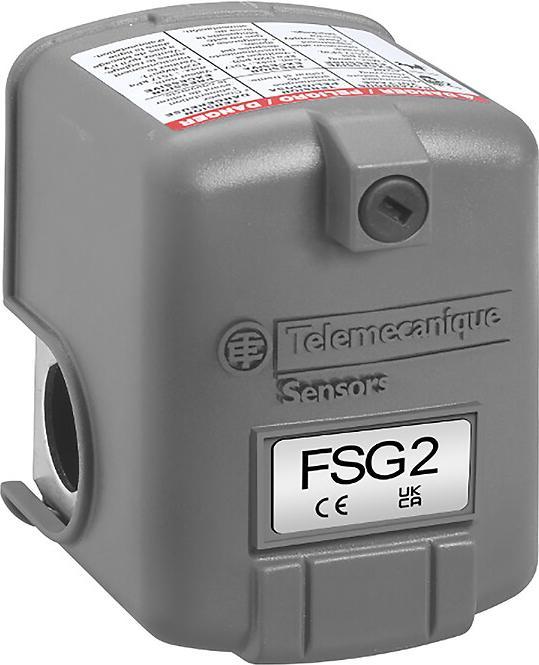

Schneider Electric FSG pressure switch, 4.6 bar, adjustable FSG2

Schneider Electric FSG pressure switch FSG2

Manufacturer: Schneider Electric
Designation: FSG pressure switch 4.6 bar
Type: FSG2
Suitable as monitor: Yes
Suitable as 2-point regulator: Yes
Suitable as limiter: Yes
Max. operating pressure: 4600 hPa
Initial setting: 1400 to 4600 hPa
Cut-out pressure: 0.3 to 3.4 bar
Max. test pressure: 8 bar
Test pressure: 8 bar
Burst pressure: 20 bar
Medium temperature: 0 to 70 °C
Thread size: Other
Rated operational voltage Ue at AC 50 Hz: 250 V
Rated operational voltage Ue at AC 60 Hz: 250 V
Electrical connection type: Screw connection
Number of NC contacts as main contacts: 2
With manual override: No
With manual on/off switch: No
Electronic version: No
With display: No
Explosion-proof: No
Protection class (IP): IP20
Protection class (NEMA): Other
Height: 96 mm
Width: 72 mm
Depth: 102 mm

FSG pressure switch, 4.6 bar, adjustable hysteresis, 2 switching points. EAN: 3389110524222.
