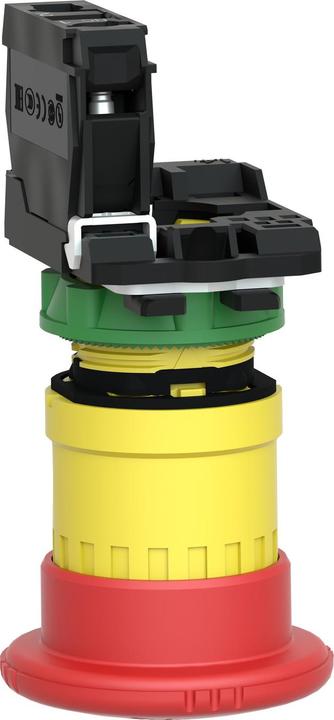

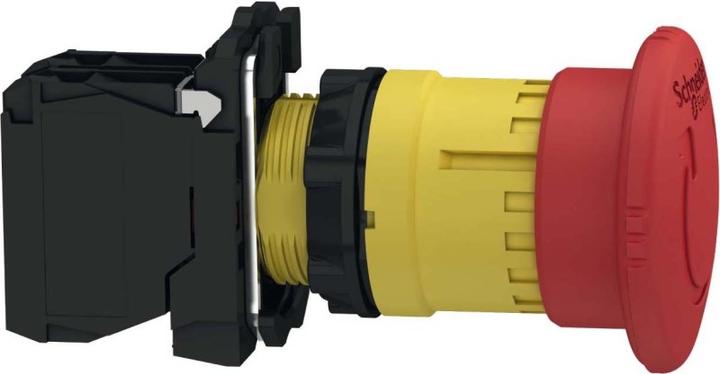

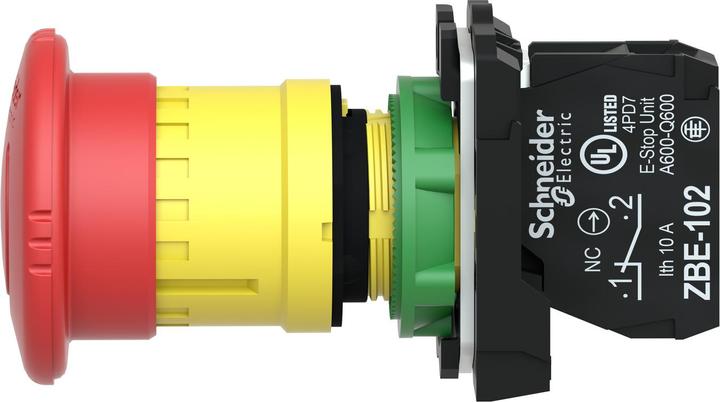

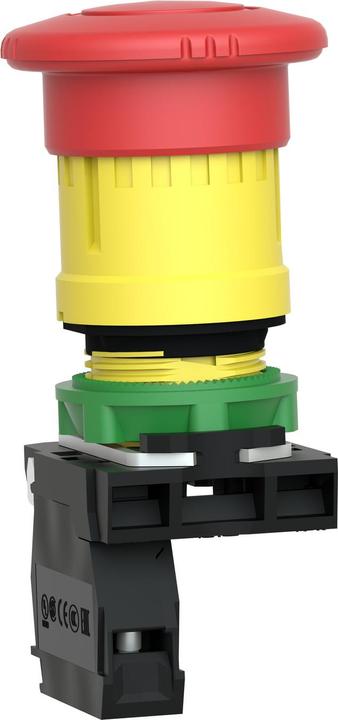

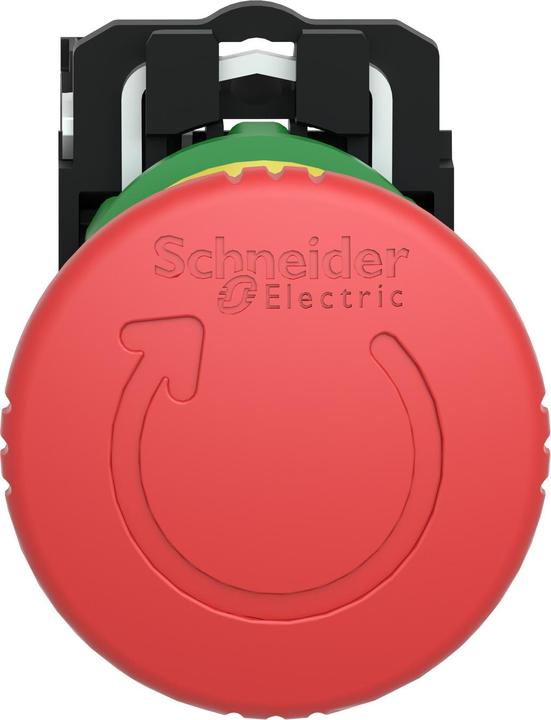

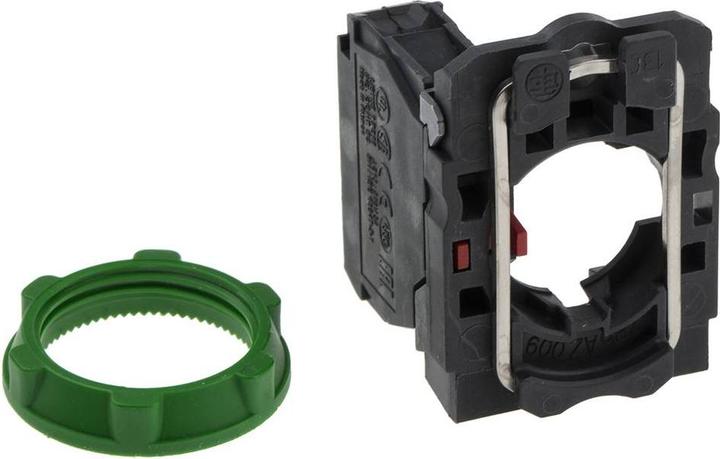

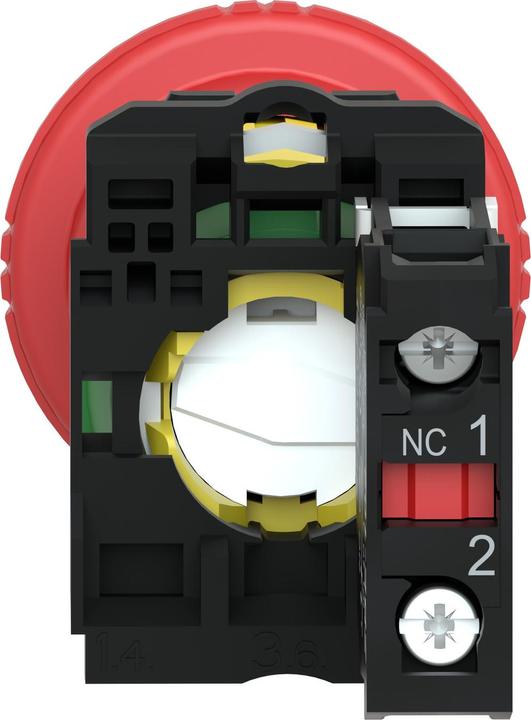

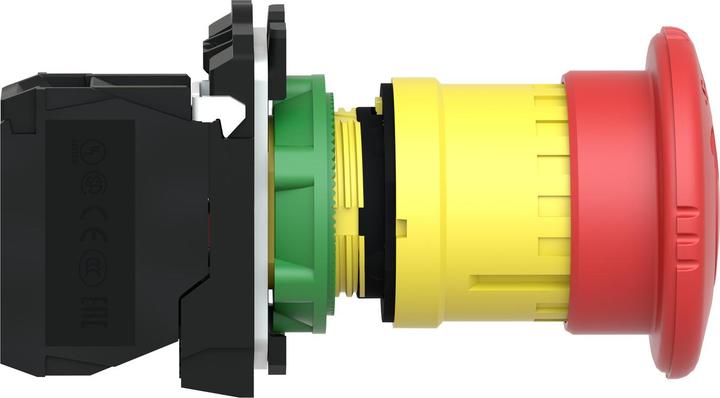

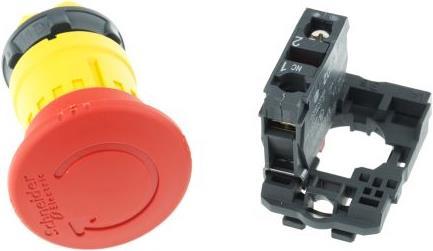

Schneider Electric Emergency Stop 40mm Turn to Release 1NC

Mounting type: Panel mounting
Reset type: Turn release
Contact configuration: Normally open
Cut-out diameter: 22.5 mm
Operating current: 1.2 A
Number and position of contacts: SPST
Protection rating: IP66, IP67, IP68, IP69, IP69K
Supply voltage: 600 V AC
Head shape: Mushroom
Illuminated: No
Series: Harmony
Head diameter: 40 mm
Color: Red

Emergency stop push buttons Series Harmony XB5. The range of XB5 plastic push buttons combines easy installation, flexibility, and robustness for most industrial applications. This is one of the most comprehensive product ranges on the market. Modern, innovative, and ergonomic design enables operation and enhances the appearance and feel of all panels and machines. They also perform well in harsh environments. These units are either complete items or individual components for customer assembly. The sealing capability is rated up to IP66, IP67, IP68, IP69, and Type 4X. The operating temperature range varies from -40 to +70 °C for outdoor applications. They comply with international standards (IEC, UL, CCC, EAC, JIS), including ship certifications. Harmony XB5 push buttons offer the flexibility to switch from standard to flush-mounted version simply by changing a single letter in the product reference. The standard mounting products can be installed with or without a notch in a Ø 22 mm hole, thanks to the self-tapping orientation pin. The flush-mounted products are installed without a notch in a Ø 30 mm hole. This provides the same actuation surfaces as standard mounting products and allows for optimal ergonomic operation even while wearing gloves. The XB5 can be used for most industrial applications, such as energy infrastructure, food and beverage, metal, mining and minerals, or oil and gas.
