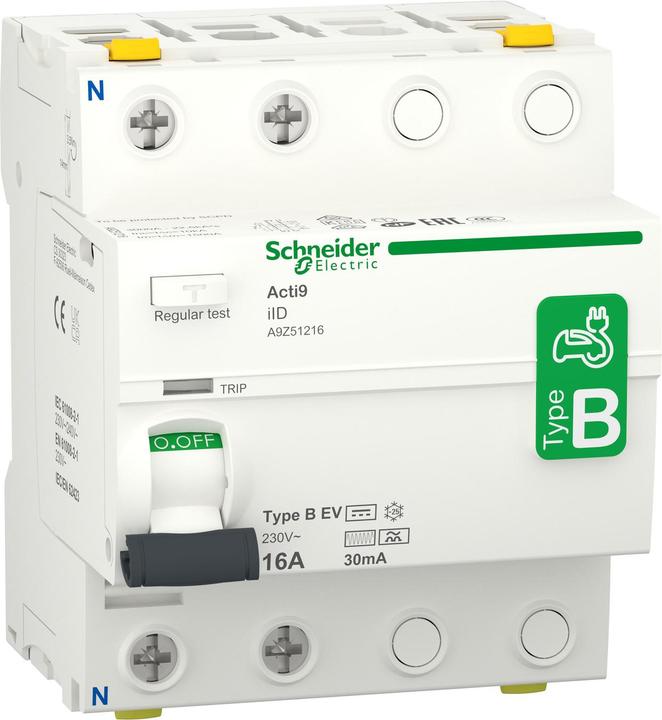

Schneider Electric ELECT A9Z51216

The Schneider Electric A9Z51216 is a highly advanced residual current circuit breaker specifically designed for electric charging stations. With a rated current of 16A and a rated residual current of 30mA, this 2-pole switch provides reliable protection against fault currents. It meets the requirements of Type B-EV and is designed to operate at a voltage of 230V AC and a frequency of 50Hz. The A9Z51216 features all-current sensitivity, allowing for precise detection of fault currents. The jump switching mechanism ensures low-wear operation of the contacts, extending the device's lifespan. Additionally, the switch includes a mechanical fault indication (VisiTrip) that provides a clear display in the event of a fault current trip. The safe contact indication (VisiSafe) ensures that when the green indicator is lit, the voltage-free condition on the outgoing side is guaranteed. The A9Z51216 is easy to install and maintain, as it has double connection terminals for dual-sided connection of cables or busbars and allows for easy removal of the individual device when a busbar is installed.

• All-current sensitive residual current circuit breaker for electric charging stations
• Mechanical fault indication (VisiTrip) to display trips
• Safe contact indication (VisiSafe) for voltage-free condition
• Double connection terminals for dual-sided connection
• Easy removal of the individual device with installed busbar.
