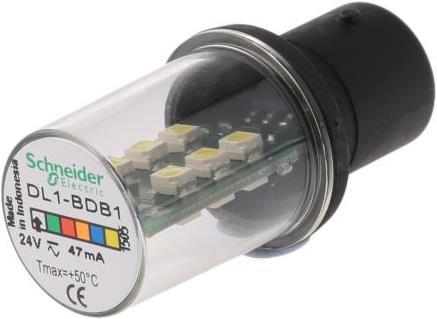

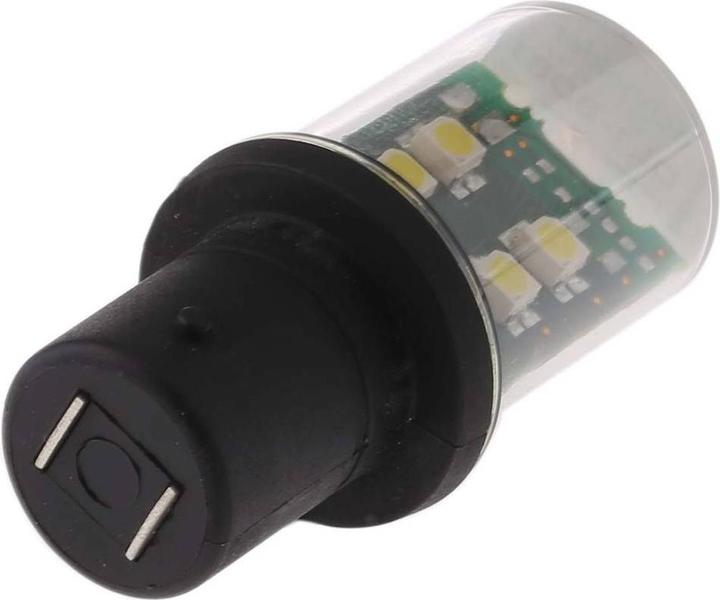

Schneider Electric Continuous light LED module 24V white

Operating voltage: 24 V AC/DC
Lamp type: LED
Lamp base: BA15d
Lens color: White
Rated current: 80 mA

CSA, e-marking, cULus. The Harmony XVPC series from Schneider is a visual and acoustic signal tower designed to display various operating states for a device or system, such as start, stop, no material, call for technical personnel, and error signaling. These signal towers are ideal for small machines, being extremely compact with a diameter of only 50 mm. The high level of protection, additional brightness, and excellent reliability make the XVPC series suitable for any environment.

Applications include vacuum packaging machines, marking machines, and winding machines. The cream-colored version is perfect for "clean" environments such as the pharmaceutical industry and electronics.

Key features include:

• Compact size of 50 mm
• Signaling over long distances: 35 to 50 m
• IP65 protection class
• International standards: CE, cULus
• Up to 5 diffusers (including an optional acoustic signaling unit)
• Two housing colors available: black for industrial use and cream for clean environments
• Six light colors available: green, red, orange, blue, transparent, and yellow
• Luminaires can be stacked and easily snapped into place
• Automatic electrical connection between luminaires; locking ring ensures safe mounting and disconnection
• Signaling by permanent lighting or flashing (incandescent lamps or LEDs with BA15d base mounting)
• Factory-mounted Xenon flashing light for high visibility applications
• Permanent or interrupted acoustic signaling
• 100,000 hours maintenance-free lighting thanks to LED technology
• Selection of mounting options.
