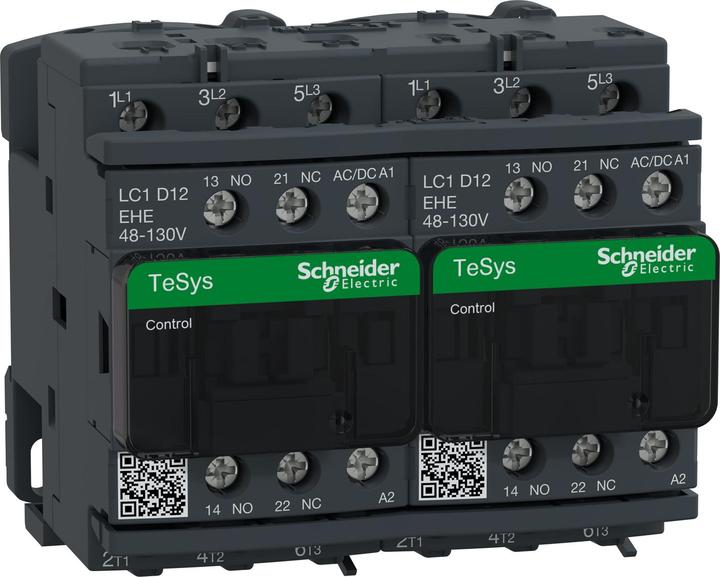

Schneider Electric Contactor 12A 3P AC3 48-130V ACDC coil

Range = TeSys D Green
Series = LC2D
Number of poles = 3
Coil voltage = 48 → 130 V ac/dc
Nominal contact current = 12 A
Nominal contact voltage = 690 V ac
Contact number and position = 3 pole normally open contact
Contact configuration = 3 NO contacts
Number of auxiliary contacts = 2
Power rating = 7.5 kW @ 660 → 690 V ac
Connection type = screw mount
Length = 90mm
Width = 86mm
Operating temperature max = +60°C

TeSys LC2D changeover contactors. Professional changeover contactors of the LC1D AC3 series from TeSys. Typical applications include resistive loads and motor control. All models are very reliable and of excellent quality. Features and benefits. 3-pole DIN rail mounting Terminals for screw mounting IP20 protection on the front.
