Schneider Electric connector plugs

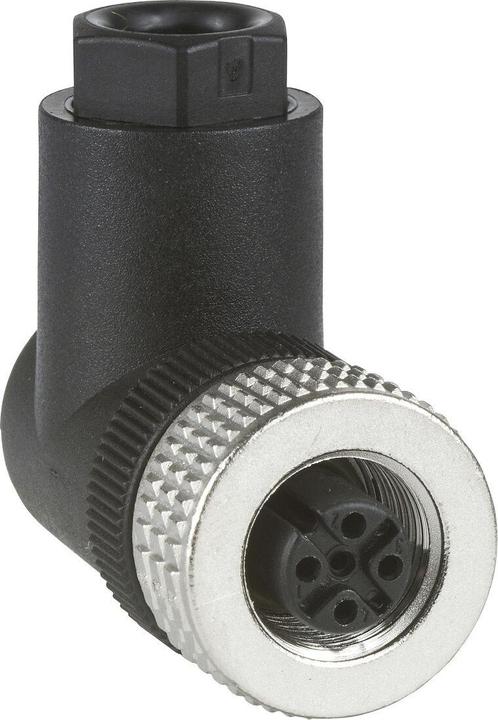

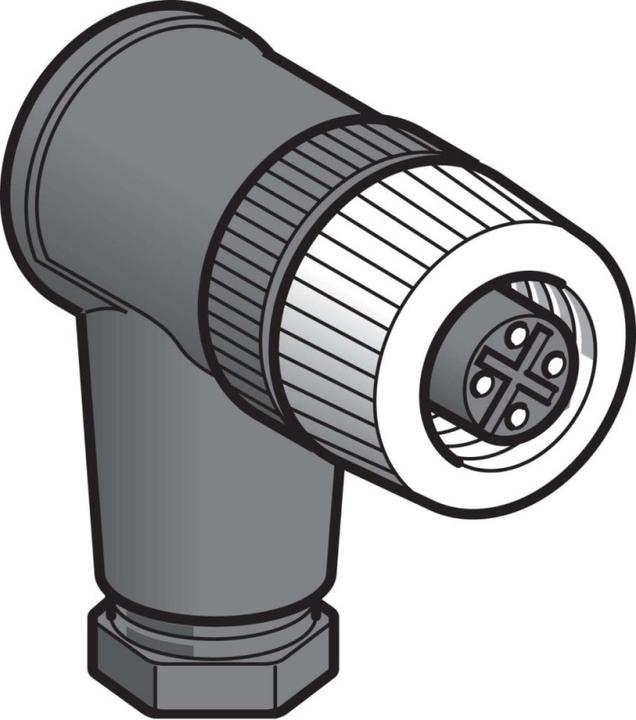

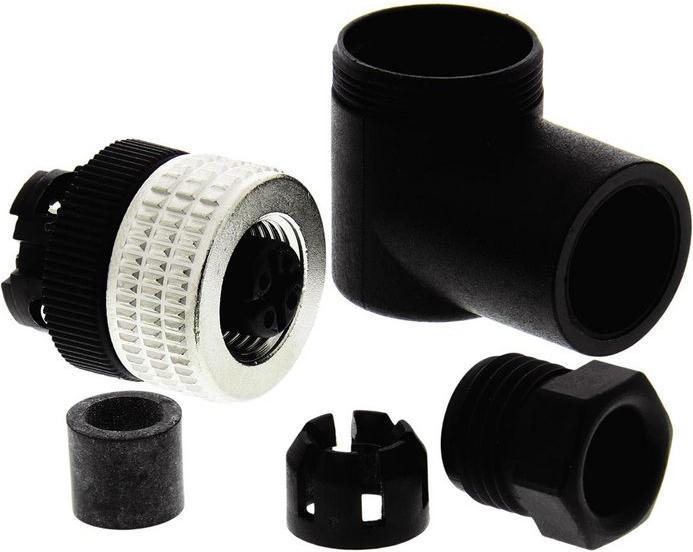

Yageo Connector, M12, 4-pole, angled, cable gland Pg 7 XZCC12FCM40B is a connector with a diameter of 12 mm, a thread size of 18 mm, and an angled housing. The connector is suitable for a rated current of 3 A and a rated voltage of 125 V. It is designed for cables without ferrules and multi-stranded with a screw connection. Contacts and housing are made of plastic and offer a protection class of IP67K. There are 4 data contacts available. This connector provides high performance with a long lifespan and is resistant to temperature fluctuations from -40 °C to +125 °C. The insulating material is UL 94 compliant and offers protection against external influences. All these features make the connector an ideal choice for demanding applications.

Features:

• Contact design: Pin
• Connector diameter: 12 mm
• Thread size (metric): 18 mm
• Housing design: angled
• Rated current: 3 A
• Ambient temperature: -40 °C
• Rated voltage: 125 V
• Connectable conductor cross-section fine-stranded without ferrule: 0
• Connectable conductor cross-section fine-stranded with ferrule: 0
• Connectable conductor cross-section solid: 0
• Connectable conductor cross-section multi-stranded: 0
• Electrical connection design: screw connection
• Contact coating material: other
• Housing material: plastic
• Locking type: none
• Flammability class of insulating material according to UL 94: other
• With protective earth: no
• Protection class (IP), mounted: IP67K
• Number of data contacts: 4
• Housing coating: none
• Material of the threaded ring: other
• Shielded: no
• With status indicator: no
• Min. number of mating cycles: -
• Number of power contacts: -
• Number of control contacts: -
• For cable outer diameter: -
• Overvoltage category: -
• Degree of pollution: -.
