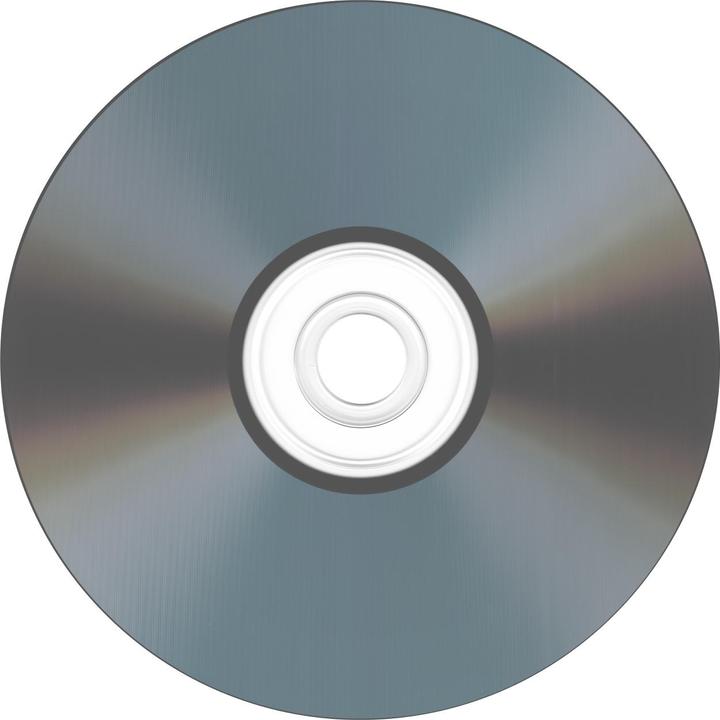

Schneider Electric Configuration software for XPS MC

Accessory variant = Connection cable
For use with = Safety switch XPSMC

For connecting an XPS-MC to a PC for programming and diagnostic purposes: Laptop PC with 9-pin serial connection: RS 382-2645 and 544-490. Laptop PC with USB connection: 464-962 and RS 218-080. XPS MCWIN, configuration software. There are 30 certified safety functions available in the software, which can be easily assigned to the safety outputs. Several combination options and various output conditions exist for the safety functions The safety functions are certified in accordance with EN 954-1/ISO 13849-1 and IEC 61508. All 8 safety outputs are suitable for use in safety-related parts of control systems that comply with Category 4 of the EN 954-1/ISO 13849-1 standard, and each output can disconnect one of its safety circuits. The following main safety functions are available:. Emergency stop monitoring, with or without delay, 1- or 2-channel wiring Two-hand control (type III-C, conforms to EN 574-1) Monitoring of safety devices with one or two limit switches, with or without interlock Monitoring of safety devices on injection molding machines and blow molding machines Monitoring of coded magnetic safety switches Monitoring of safety mats Monitoring of light curtains, Semiconductor and relay outputs Standstill detection (zero speed) Dynamic monitoring of hydraulic valves on linear and eccentric presses Monitoring of safety stops at top dead center of eccentric presses Safety time delays "Damping" function for light curtains Switch monitoring, 2 or 3 contacts Logical OR function Foot switch monitoring Axis monitoring on chain drives Monitoring of hydraulic and eccentric presses Position selection.
