Schneider Electric CCT15482

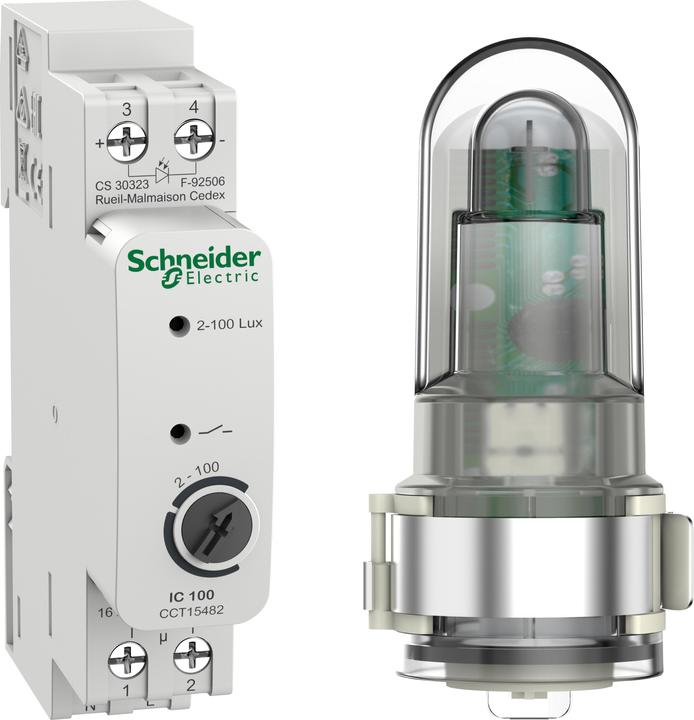

The IC100 CCT15482 twilight switch from Schneider Electric is a highly advanced automation device specifically designed for controlling lighting systems. With an adjustable threshold of 2 to 100 Lux, this switch allows for precise adaptation to ambient light conditions. The delay functions for turning on and off ensure a smooth transition, with the activation taking about 20 seconds and deactivation about 80 seconds. The switch is suitable for mounting on DIN rails according to EN 60715 and offers a rated voltage of AC 230 V with a maximum switching capacity of 16 A. Its versatile connection options and high accuracy of ±0.25 seconds per day at 25 degrees Celsius make it a reliable choice for industrial automation. With a service life of 10 years and a standby power consumption of only 0.3 W, the twilight switch is both efficient and durable.

• Adjustable threshold of 2-100 Lux for flexible light control
• Delayed on and off switching for smooth transitions
• Maximum switching capacity of 16 A at AC 250 V
• High accuracy of ±0.25 seconds per day
• Robust protection class IP 55 for the outdoor sensor.
