Product details

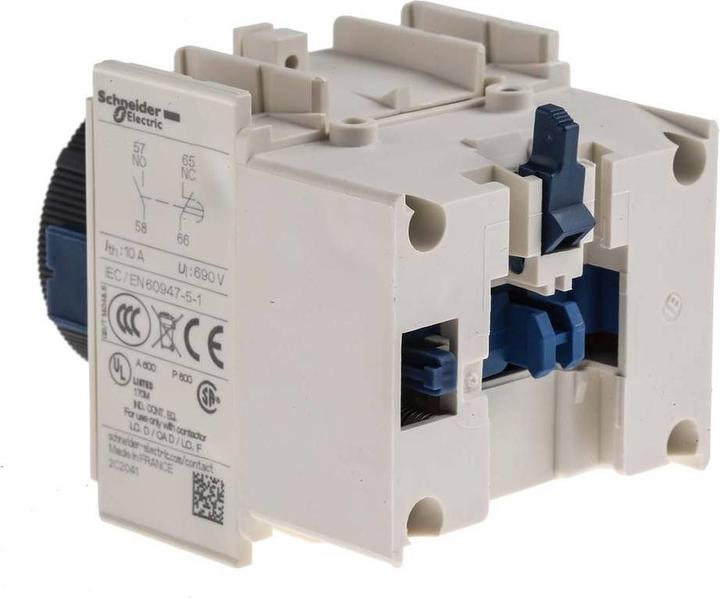

Schneider Electric Time Delay Relay R LADR2
Manufacturer: Schneider Electric
Designation: Time Delay Relay R 0.1-30.00s
Type: LADR2
Switching Function: fall delay
Setting Time: 0.1 - 30 s
Number of Contacts as Normally Closed: 1
Number of Contacts as Normally Open: 1
Operating Principle: electronic
The Schneider Electric Time Delay Relay R LADR2 is a fall delay relay designed for the TeSys D/F contactor series. It features 1 normally closed and 1 normally open contact, suitable for up to 10A and 690V AC, with a fall delay setting range of 0.1 to 30 s. Installation is straightforward by snapping onto the front, ensuring high reliability and durability. The time delay relay is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine) and complies with Green Premium guidelines (RoHS/REACH).
Actuator type | Analogue actuator |
Items per sales unit | 50 x |
Item number | 9726815 |
Manufacturer | Schneider Electric |
Category | Actuator |
Manufacturer no. | LADR2 |
Release date | 24.9.2018 |
External links |
Colour | White |
Exact colour description | White |
Actuator type | Analogue actuator |
rated current | 140 A |
Operating voltage | 690 V |
Number of switching outputs | 1 x |
Protection type (IP code) | IPX2 |
Smart Home | Not compatible |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 50 x |
Length | 0.07 m |
Width | 0.04 m |
Height | 0.05 m |
Length | 6.90 cm |
Width | 5.30 cm |
Height | 4.90 cm |
Weight | 66 g |
