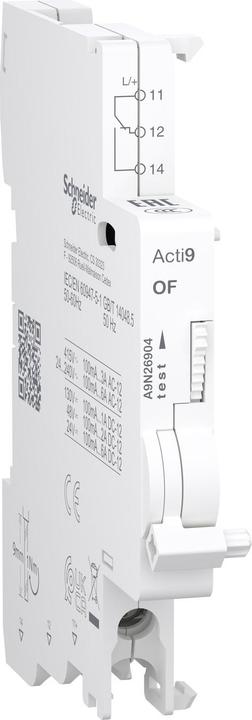

Schneider Electric Auxiliary switch, Acti9, OF 1OC, 100mA - 6A, AC/DC, bottom connection A9N26904

Ratings
BrandMore from Schneider Electric
Delivered between Sat, 10.10. and Wed, 28.10.
8 pieces in stock at supplier
Free shipping starting at 50.–

Show all

Product details

The Acti9 auxiliary switch from Schneider Electric is a versatile electrical accessory that functions as a changeover switch (normally open/normally closed). It allows for the display of the switching status of a circuit breaker, either open or closed. With an operating current of up to 6A at various AC and DC voltages, this switch is suitable for a wide range of applications, including small businesses, critical infrastructures, healthcare, and data centers. The auxiliary switch is compatible with several Acti9 series and offers easy mounting on a DIN rail. Connection is made via screw terminals at the bottom, which support both rigid and flexible copper cables. With a high rated insulation voltage and impulse voltage, this auxiliary switch is designed for demanding environments, ensuring reliable performance.

  • Compatible with Acti9 series such as C120, C60H-DC, and SW60-DC
  • Operating current of 6A at 24VDC and 3A at 277VAC
  • Easy mounting on DIN rail for modular installations
  • Screw terminal connection for flexible and rigid copper cables
  • High rated insulation voltage of up to 500V and impulse voltage of 4kV.

Key specifications

Circuit breaker type
Auxiliary switch
Mounting type
Top-hat rail
Length
68 mm
Width
9 mm

General information

Item number
42368068
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer No.
A9N26904
Release date
22.1.2024
Sales rank in Category Residual-current device
39 of 12936

Colour

Colour
White
Exact colour description
White

Circuit Breaker Features

Circuit breaker type
Auxiliary switch
Mounting type
Top-hat rail
Mounting type
Screw fastening
Rated voltage
240 V
voltage type
AC/DC
Insulation voltage (Ui)
500 V
Residual current
0.10 A
Protection type (IP code)
IP20

Origin

Country of origin
Belgium, France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
68 mm
Width
9 mm
Height
85.30 mm
Weight
30 g

30-day right of return
24 Months Warranty (Bring-in)
