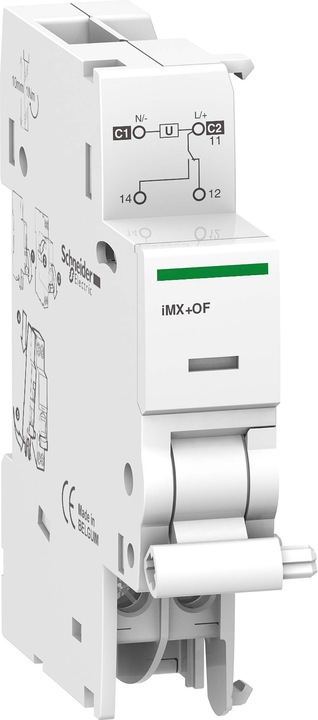

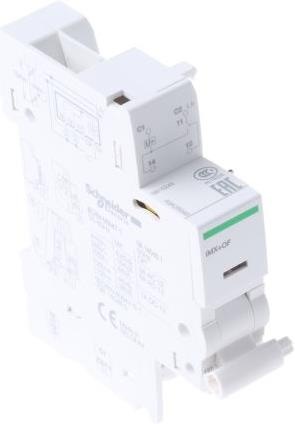

Schneider Electric Acti9 iMX+OF tripping unit 100-415VAC
Product details
Rated current: 3 A
Series: iMX
Type: Shunt release
Control voltage: 100 to 415 V AC, 110 to 130 V DC
Auxiliary contacts: The auxiliary electrical components are combined with iC60 circuit breakers, iID residual current circuit breakers, iSW-NA remotely tripped circuit breakers, RCA remote controls, and ARA automatic closers. They enable tripping or remote indication of their position (open/closed/tripped) in the event of a fault.
Auxiliary trip components:
iMN: Undervoltage release
iMNs: Undervoltage release with delay
iMNx: Undervoltage release independent of supply voltage
iMX: Shunt release
IMX + OF: Shunt release with break/make contact
Auxiliary display components:
iOF: Normally closed/normally open contact
iSD: Error display contact
IOF/SD + OF: Normally closed/normally open contact and switchable OF or SD contact.
