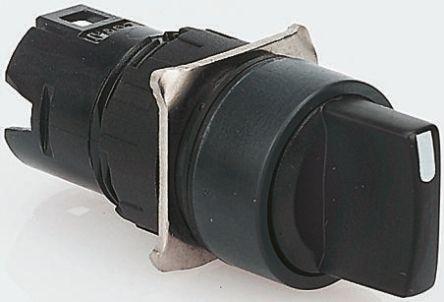

Schneider Electric 3-position selector switch

Schneider Electric Front Element ZB6AD25

Manufacturer: Schneider Electric
Designation: Front element for selector switch D16mm
Type: ZB6AD25
Number of switching positions: 3
Design of the actuating element: short rotary knob
Suitable for lighting: no
Color of the actuating element: black
Lens shape: round
Hole diameter: 16.2 mm
Width of opening: 0 mm
Height of opening: 0 mm
Switching function with locking: no
Pushbutton: yes
With front ring: yes
Material of the front ring: plastic
Color of front ring: black
Protection class (IP), front side: IP65
Protection class (NEMA): other

Schneider Electric Front Element ZB6AD25: additional details
Front element for Harmony ZB6 selector switch. Plastic bezel. 3 positions at 45°. Dimensions (WxHxD) 18x18x43 mm, mounting diameter 16 mm, weight 0.018 kg. Round head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with 16mm installation size combines easy installation with great flexibility in minimal space. Certifications according to UL, GOST, CCC, CSA. Product standards according to CSA C22.2 No 14, EN/IEC 60947-1, JIS C 852, JIS C 4520, EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508.
