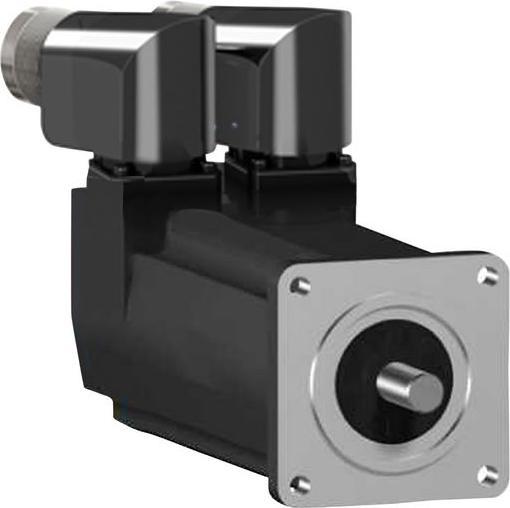

Schneider AC servo, SH3, 55 mm, 1.2 nm, smooth shaft IP54/IP65, singleturn 128 P/U, 2x M23 SH30553P01A2000

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it achieves a higher power density in a compact design. This servo has a nominal continuous stall torque of 1.2 Nm and reaches a peak torque of 3.5 Nm. Its rated speed can be up to 9000 RPM depending on the supply voltage. It offers a voltage-dependent rated power of up to 970 W. The built-in encoder is a single-turn type with 128 pulses per revolution (128x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. For mounting, the motor flange measures 55 mm. The drive shaft has a diameter of 9 mm. The shaft end is smooth and complies with protection class IP54. The motor housing meets protection class IP65. There is no holding brake. For operating the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.
