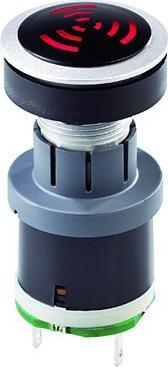

Schlegel RRJNSGL+SGLR-24V Illuminated audible interval signal transmitter, silver colour Type

The RRJNSGL+SGLR-24V illuminated acoustic interval signal transmitter from Schlegel is a reliable and versatile device designed for various applications in signaling technology. With an elegant silver front frame and a round shape, this signal transmitter integrates harmoniously into different environments. It is suitable for installation in openings with a diameter of 22.3 mm and offers a high protection rating of IP65, making it ideal for use in demanding environments. The signal transmitter operates with a supply voltage of 12 to 24V AC/DC and generates acoustic signals with a frequency of 3.5 kHz. The volume can reach up to 85 dB, ensuring it is audible even in loud environments. The operating temperature ranges from -20°C to +60°C, ensuring broad applicability.

• Protection class IP65 for high resistance to dust and water
• Acoustic signal frequency of 3.5 kHz for clear signaling
• Maximum volume of 85 dB at 24V for high audibility
• Operating temperature range of -20°C to +60°C for versatile applications
• Easy connection type via flat plug 2.8x0.8 mm.
