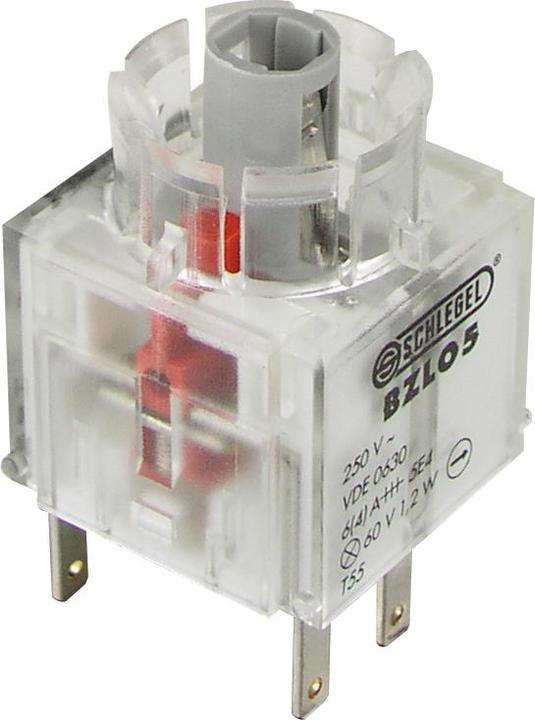

Schlegel BZLO5 AU Illuminated pushbutton contact 1Ö

Schlegel illuminated push-button contactor
Series: Contact maker BZ...
Protection class: II (protective insulation)
Protection class: IP00
Switching function: Push-button function
Stroke: 3 mm
Illumination: yes
Labelling: no

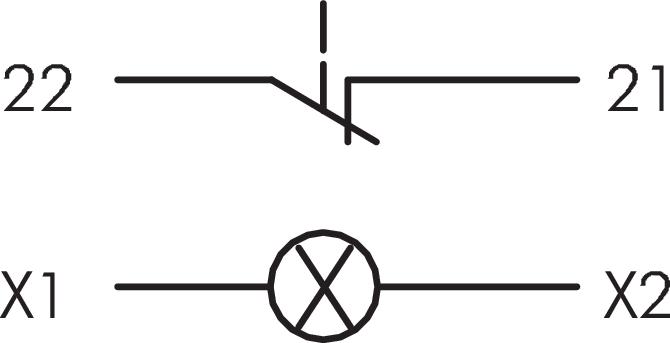

Contact type: 1Ö
Connection type: blade terminal 2.8 mm x 0.8 mm
Electrical life: 1 million operations at rated load
Storage temperature: -50°C ... 85°C
Mechanical life: 1 million switching cycles
Accessory type: Contact maker
Operating temperature:
Without illumination: -30°C ... 70°C
With incandescent lighting: -30°C ... 55°C,
With LED lighting: -30°C ... 65°C
Contact material: AgNi, gold-plated
Lamp socket: T5.5K
With gold plating.
