Schalk Radio receiver switch

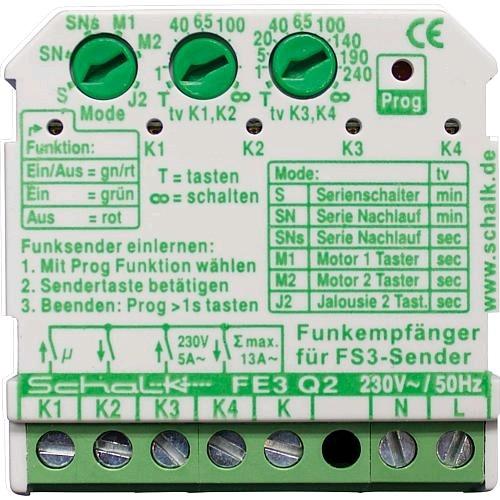

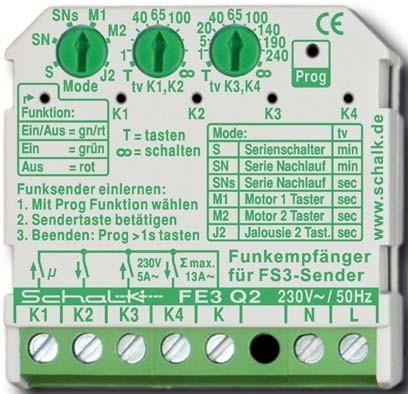

Schalk radio receiver switch flush-mounted FE3 Q2

Manufacturer: Schalk
Designation: Radio receiver switch flush-mounted 4-channel
Type: FE3 Q2
Suitable for dimmers: Yes
Suitable for pulse push-buttons: Yes
Suitable for shutter switches: Yes
Suitable for blind switches: Yes
Suitable for blind/roller shutter switches: Yes
Suitable for switches: Yes
In housing: Yes
In tube base housing: No
As module/board: No
Power supply: 230 V AC
Push-button operation: Yes
Switching operation: Yes
Number of relays: 4
Mounting type: Flush-mounted
Material: Plastic
Halogen-free: Yes
Color: Gray
Radio frequency: 433.92 MHz

The extremely compact radio receiver switch FE3 Q2 with 4 relays, together with the radio transmitters of the FS3 series, enables wireless switching of electrical equipment. It can be used as a series switch, for the transmission of contact states, or for motor and shutter control. Various teachable functions allow radio transmitters to be taught-in for local control or for group/central control. One- or two-button control is possible. With four powerful 5A relays, the FE3 Q2 allows either switching of 4 individual consumers (e.g., lamps, fans, pumps, etc.) or 2 motors with 2 running directions each, such as shutters, blinds, and gates. Additional time functions allow automatic switching after a set (post) running time has elapsed. Compatible products include the radio transmitter FS3 series and repeater FV2 R. Dimensions: 43x43x18.5 mm, 230V AC, 4 NO contacts 5A (common potential free).
