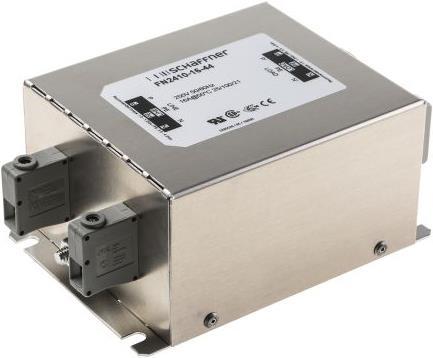

Schaffner EMV Single-phase chassis-mount filter,16A

The FN2410-16-44 filter is a high-performance device designed for applications with high noise levels. With a maximum rated current of 16 A and an operating voltage of up to 250 V AC, this filter provides a reliable solution for reducing electrical disturbances in various industrial and commercial applications. The chassis mounting and screw connection allow for easy installation and integration into existing systems. The filter is designed to operate at frequencies of up to 400 Hz and can withstand temperatures of up to +100 °C, making it a robust choice for demanding environments. With a leakage current of only 3.4 mA and a power consumption of 3.5 W, the FN2410-16-44 is both efficient and safe in operation. It meets the standards EN 133 200, UL 1283, and CSA 22.2 No. 8 1986, underscoring its quality and reliability.

Maximum rated current of 16 A for high power requirements
Operating voltage up to 250 V AC
Suitable for frequencies up to 400 Hz
Robust chassis mounting with screw connection
Meets multiple safety standards, including EN 133 200 and UL 1283.
