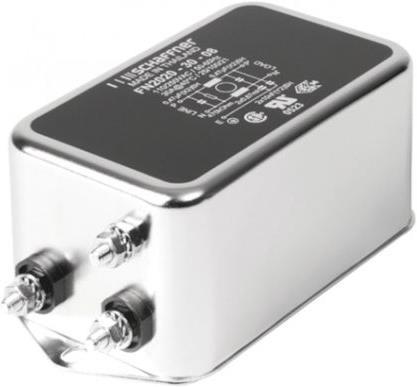

Schaffner EMV Single Phase Chassis Mount 30a Filter

Nominal current max: 30A
Operating voltage max: 250 V AC
Mounting type: Chassis mounting
Connection type: Screw
Number of phases: 1
Series: FN2020
Operating frequency: 0 to 400Hz
Length: 113.5mm
Depth: 57.5mm
Capacitance: 10 nF, 470 nF
Dimensions: 113.5 x 57.5 x 45.4mm
Leakage current: 0.87 mA
Maximum operating temperature: +100°C
Resistance: 470kΩ

UL approval, CSA certification, VDE. FN2020 series. FN2020 filters are designed for easy and quick chassis installation and are also available in a B version, which is the medical option, and an A version, which is the safety option. All FN2020 filters provide high universal attenuation performance, based on inductors with high saturation resistance and excellent thermal performance. Higher capacitance between phase and neutral for better differential mode performance. Connection via 6.35 mm Faston connectors.
