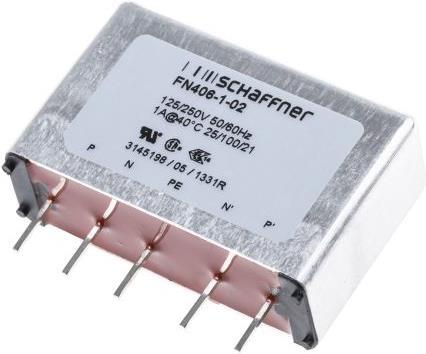

Schaffner EMV PCB mount filter,45x15mm 1A

Nominal current max: 1A
Operating voltage max: 250 V AC
Mounting type: Through-hole mounting
Connection type: Pin
Number of stages: Single filter
Operating frequency: 400Hz
Length: 45mm
Depth: 15mm
Height: 29.5mm
Inductance: 12 mH
Leakage current: 0.373 mA
Maximum operating temperature: +100°C
Resistance: 1MΩ
Compliance with standards: UL 94 V-0

The FN 406 series FN406 PCB filter is a single-phase filter designed for easy, quick, and compact PCB mounting. A selection of current ratings and medical types has been developed to provide you with the standard product you need. It can be used in a variety of applications, such as portable electrical and electronic devices, small to medium-sized machines, household appliances, single-phase and switch-mode power supplies, as well as testing and measuring equipment and medical devices. Compact, PCB-mountable design with a flat profile. Optional medical version (Type B). Good attenuation performance, based on inductors with high saturation resistance and excellent thermal performance.
