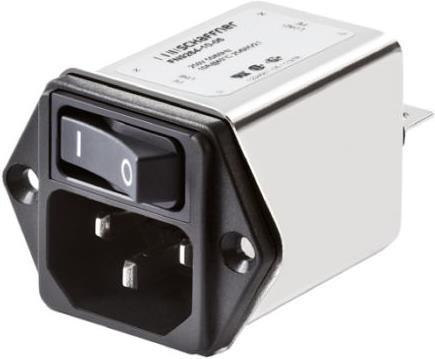

Schaffner EMV IEC Inlet filter 2-pole switched 10A

Rated current max: 10A
Operating voltage max: 250 V ac
Mounting type: Flange mounting
Connection type: Solder strip
Series: FN9264
Operating frequency: 50 to 400Hz
Length: 51.45mm
Depth: 46mm
Height: 35mm
Dimensions: 51.45 x 46 x 35mm
Operating temperature min: -25°C
Operating temperature max: +85°C
Resistance: 1MΩ

FN9264 - Switched IEC filter. The FN9264 IEC inlet filter combines an IEC inlet and line filter with excellent filter attenuation in a small form factor. A wide range of current ratings, mounting options, and filters for medical applications have been developed to provide various solutions. Compact design, rated currents up to 10 A, complies with IEC/EN 60601, high quality 2-pole toggle switch, good attenuation performance, Faston terminals for easy mounting.
