Schaffner EMV Delux

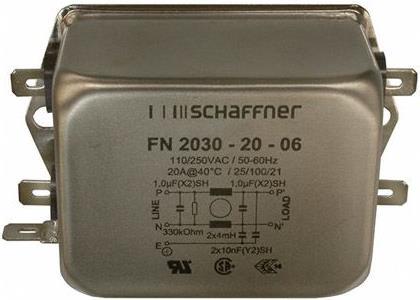

The Schaffner FN2030-20-06 is a high-performance interference filter designed for use in various electrical applications. With a rated voltage of 250 V AC and a rated current of 20 A, this filter provides a reliable solution for reducing electromagnetic interference (EMI) in AC and DC applications. The inductance of 4 mH ensures effective filtering, while the compact dimensions of 85 x 54 x 30.3 mm allow for easy integration into existing systems. The filter is designed for operating temperatures ranging from -25 °C to 100 °C, making it suitable for a variety of environments. The connection type via quick connect or solder terminal ensures user-friendly installation. The Schaffner FN2030-20-06 is therefore an excellent choice for anyone seeking a reliable and efficient solution for interference reduction.

• Operating temperature range from -25 °C to 100 °C
• Leakage current of only 790 µA
• Resistance of 330 kΩ for improved performance
• Flammability class UL 94 V-2 for increased safety
• Suitable for AC and DC applications.
