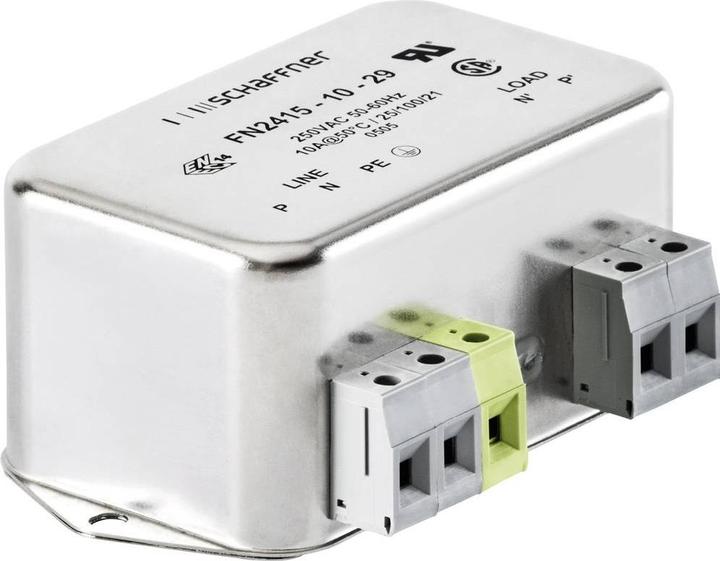

Schaffner EMV Chur

Nominal current max. = 16A
Operating voltage max. = 250 V AC
Mounting type = Chassis mounting
Connection type = Screw
Series = FN2415
Operating frequency = 60Hz
Length = 94mm
Depth = 56mm
Height = 45.4mm
Dimensions = 94 x 56 x 45.4mm
Leakage current = 9.4 mA
Max. operating temperature = +100°C
Power loss = 4.3W

Series FN 2415. The single-phase filters of the FN 2415 series from Schaffner are extremely compact and lightweight, requiring minimal space in machines and devices. The filters in the FN 2415 series enhance the immunity, reliability, and operational safety of the entire system by reducing the risk of internal disturbances as well as their propagation and coupling. The high attenuation performance of the FN 2415 filter series makes a significant contribution to electromagnetic compatibility according to the latest standards. Typical applications include industrial equipment, machines, and process automation, where any type of control unit is used – e.g., NC, CNC, PLC, or motion control. Compact design, easy installation.
