Samsung 860 Evo

1000 GB, mSATA
Currently out of stock
Free shipping starting at 50.–

Product details

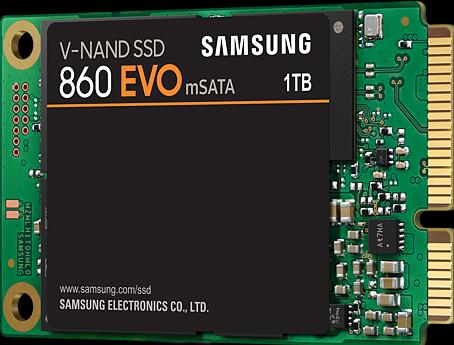

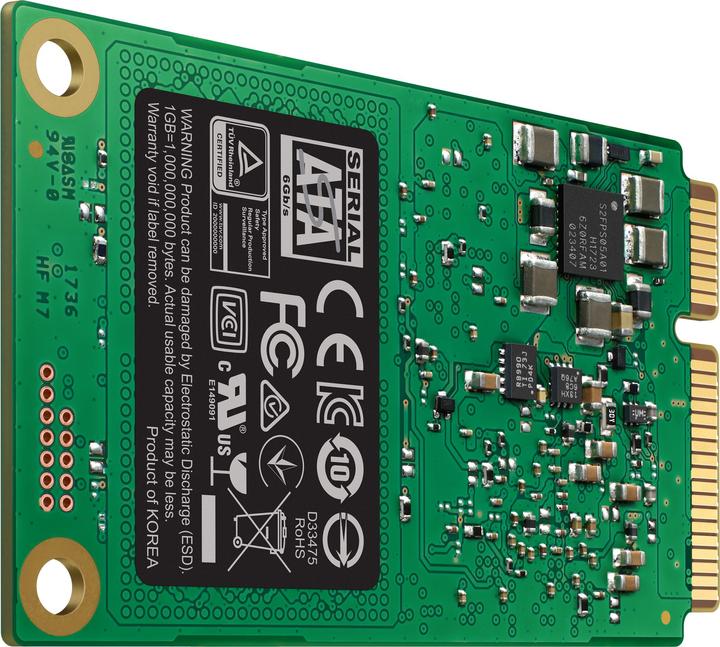

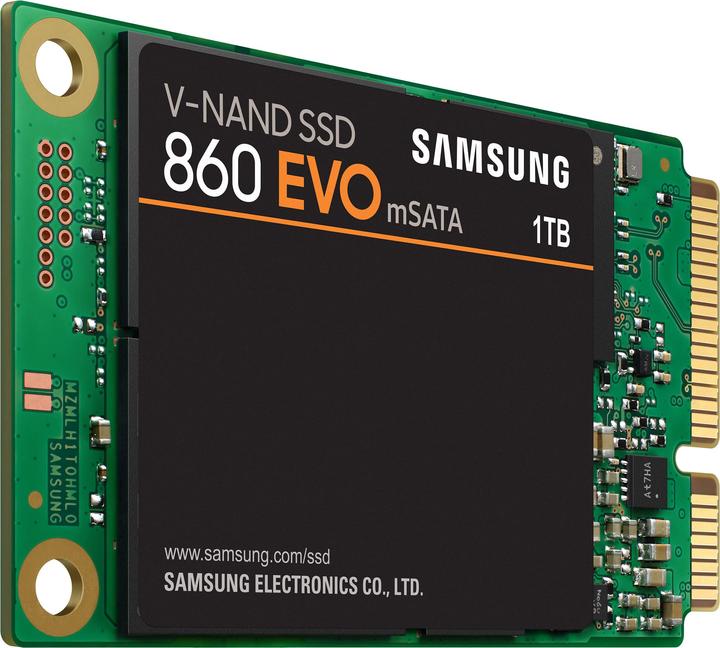

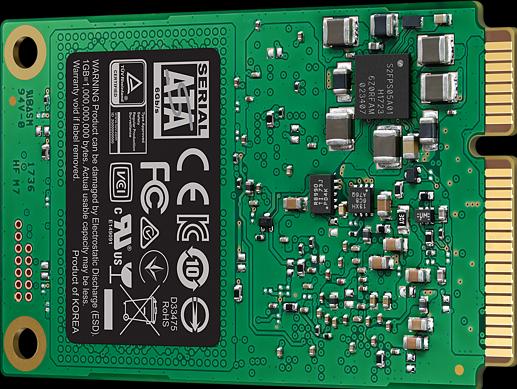

The Samsung 860 EVO is aimed at demanding private users who want to enhance the performance of their PCs or notebooks. It utilizes TLC V-NAND with 64 layers of memory. Thanks to the Intelligent TurboWrite technology with a variable SLC buffer, it achieves higher performance over longer periods compared to current TurboWrite technologies. Enjoy maximum compatibility and stability: originally designed for data center SSDs, the new MJX controller processes data faster, executes finer error corrections, and supports larger drive capacities. In terms of reliability, the 860 EVO has been significantly improved, achieving up to 8x higher TBW (Terabytes Written) values than its predecessor. The 860 EVO is equipped with the latest hardware-based disk encryption engine. The AES 256-bit and TCG Opal 2.0 encryption secure data without compromising performance. It is also compatible with IEEE-1667 for Microsoft's eDrive. You can sleep soundly knowing that your data is always protected. mSATA SSDs are small, enclosure-free SSDs that are directly plugged into the motherboard. They are mostly used for SSD caching but can also be utilized like regular SSDs. In tight spaces, mSATA may be the only way to incorporate an SSD into a system. A prime example of this is ultrabooks, as they are, by definition, particularly slim devices.

Key specifications

SSD type
mSATA SSD
Interface
mSATA
Protocol
AHCI (SATA)
Write transfer speed
520 MB/s
Read transfer speed
540 MB/s
Max. random 4K read
98000 IOPS
Max. random 4K write
90000 IOPS
Item number
7197987

General information

Manufacturer
Samsung
Category
SSD
Manufacturer no.
MZ-M6E1T0BW
Release date
9.1.2018
External links

Data storage properties

SSD type
mSATA SSD
Form factor
mSATA
Storage capacity
1000 GB
Interface
mSATA
Protocol
AHCI (SATA)
Read transfer speed
540 MB/s
Write transfer speed
520 MB/s
Memory type (NAND)
TLC
Max. random 4K read
98000 IOPS
Max. random 4K write
90000 IOPS
Max. TBW
600 TB
SSD Features
AES encryptionSMART SupportSSD TRIM Support

Power supply

Power consumption (standby)
0.05 W
Power consumption
3.30 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
5.08 cm
Width
2.99 cm
Height
0.39 cm
Weight
6.80 g

Package dimensions

Length
14.50 cm
Width
10 cm
Height
2.20 cm
Weight
76 g
