Product details
Safely feed solar power into the grid. Ensure an optimum connection between your solar system and your Wieland socket for feeding power into the domestic grid.
Accessories for solar WLAN microinverter include:

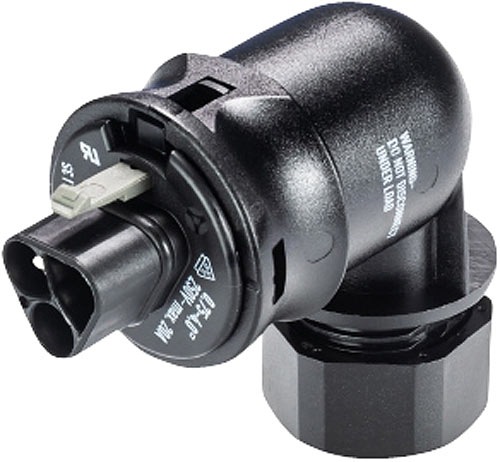

- 90° angled connection to a power feed socket
- Turned contacts with screw connection
- Rated current: 20 A
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- For cable diameter: 10 - 14 mm, connection cross-section: 0.75 - 6 mm²
- 3-pole plug with crimp type connection
- Self-locking (can be released with tools) and with strain relief
- Insulating part continuous temperature resistance: 100 °C
- Protection class: IP66/68 (3m; 2h) / IP69
- Enclosure material: PA66, V2
- Sealing material: NBR
- Dimensions: 71 x 35 x 62 mm.
