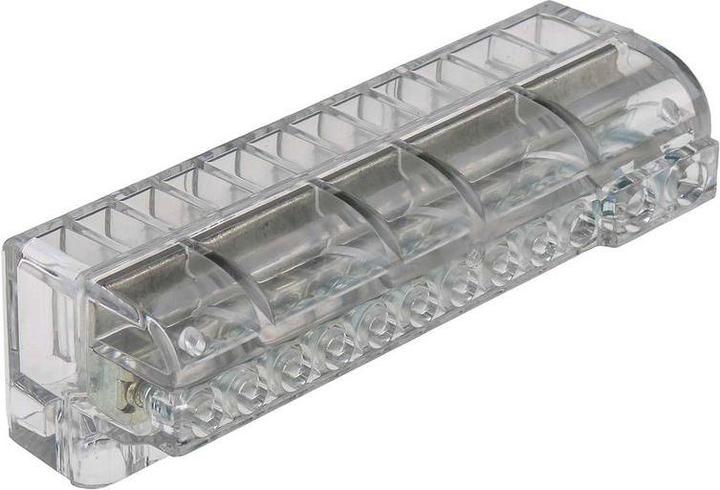

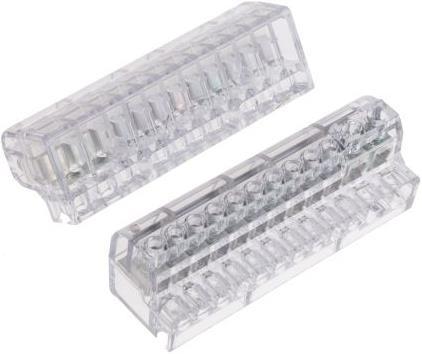

RS PRO Z16-12,12 way commoning block

Ratings
BrandMore from RS PRO
Delivered between Thu, 26.3. and Mon, 30.3.
Only 1 piece in stock at third-party supplier
Supplied by
free shipping

Product details

Number of terminals: 12
Wire size: 10 → 5 AWG
Rated current: 100 A
Connection type: Screw
Length: 104.5 mm
Width: 32.5 mm
Height: 36.5 mm
Color: Clear
Operating voltage: 450 V
Cable cross-section: 16 mm², 6 mm²
Maximum operating temperature: +85 °C

Terminal blocks. Designed for connecting cables of the same potential, the terminal strips are ideal for use in junction boxes, control panels, equipotential systems, and anywhere safe disconnection of branch lines without interrupting the main lines is required. Each pole of the terminal is internally connected by a copper busbar to create a low-resistance current path. Some blocks are available in a mixed pole size format – for example, item no. 388-2849 is specified as 2 + 6. This means 2 x 16 mm² + 6 x 6 mm². Voltage 450 V rated current according to cable cross-section: 6 mm (16 A), 16 mm (100 A), 35 mm (170 A). The rated current of the mixed pole format corresponds to the largest available cable cross-section.

Key specifications

Cable + connector type
Plug connectors

General information

Item number
10363294
Manufacturer
RS PRO
Category
Cables + Plugs
Manufacturer no.
3882855
Release date
25.1.2019

Colour

Colour
Transparent

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
85 °C
mounting type
DIN rail mounting

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
84.15 kg
Climate contribution
CHF 2.–

Scope of delivery

Items per sales unit
3 pcs.

Product dimensions

Length
25.90 cm
Width
15.40 cm
Height
5.20 cm

30-day right of return
24 Months Warranty (Bring-in)
